The Bomar 1600-B redefines marine sliding doors with high-performance engineering and standard recreational marine weathertight sealing designed for long-term durability.
Bomar 1600-B
Standard Features
Construction & Design
- Marine Grade Aluminum
- ¼” Thick Tempered Glass – Full Glass Panels
- Mobella Flush Mount Lockset
- Mitered Corners
- Roller Carriage Slide Mechanism
- Easy Installation
- Windows directly glazed to exterior skin for clean look and improved corrosion protection
Bomar 1600-B
Additional Options
Personalization Options
- Available Finishes: Powder Coated Finish
- Custom Sized Windows – Match Site Lines
- Interior Trim
- ADA Sill
Bomar 1600-B
Configurations
Quality construction, built to last at sea.
Configurations
- Door Opening Configurations:

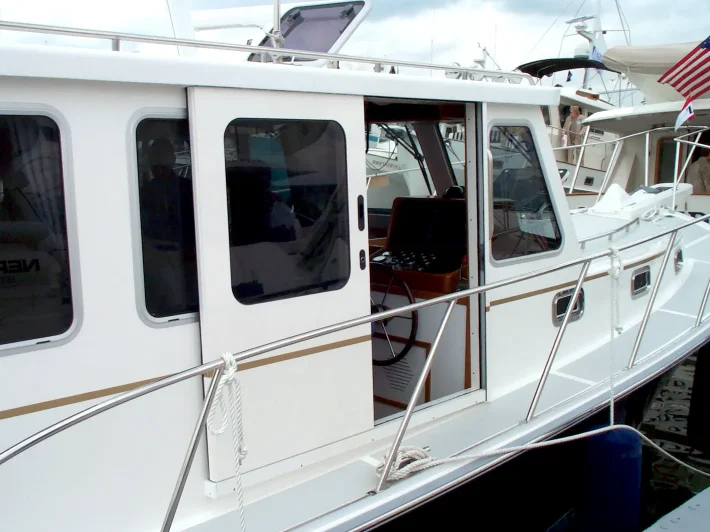

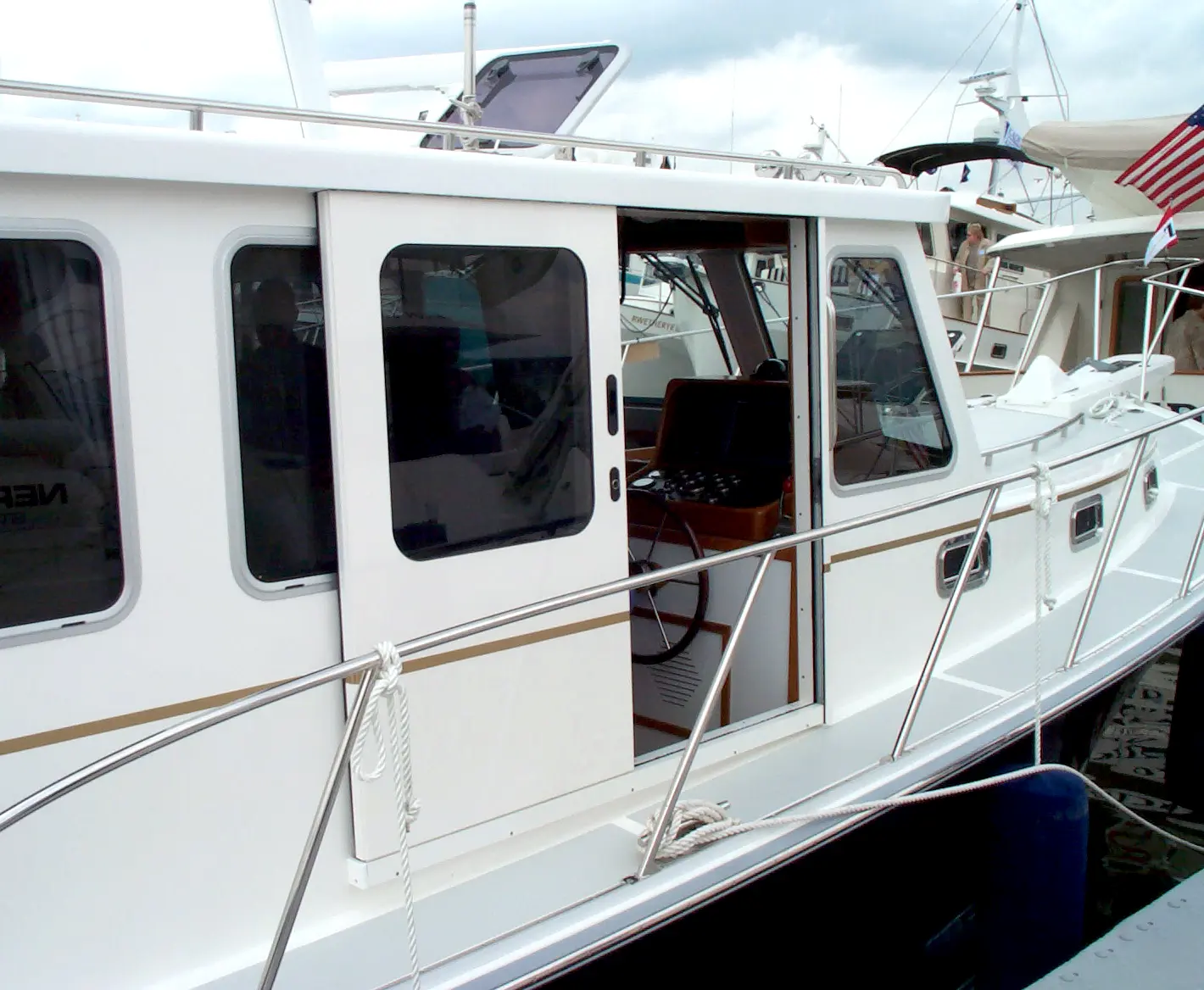

- Single Slider (X)

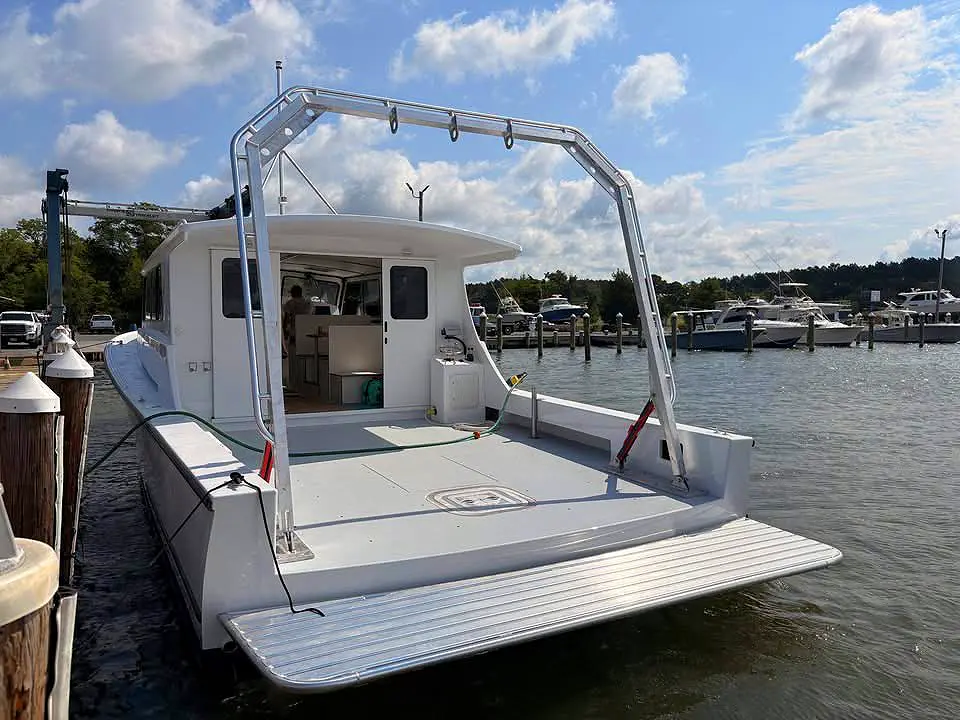

- Bi-Parting (X-X)
Bomar 1600-B
Door Size Reference Chart

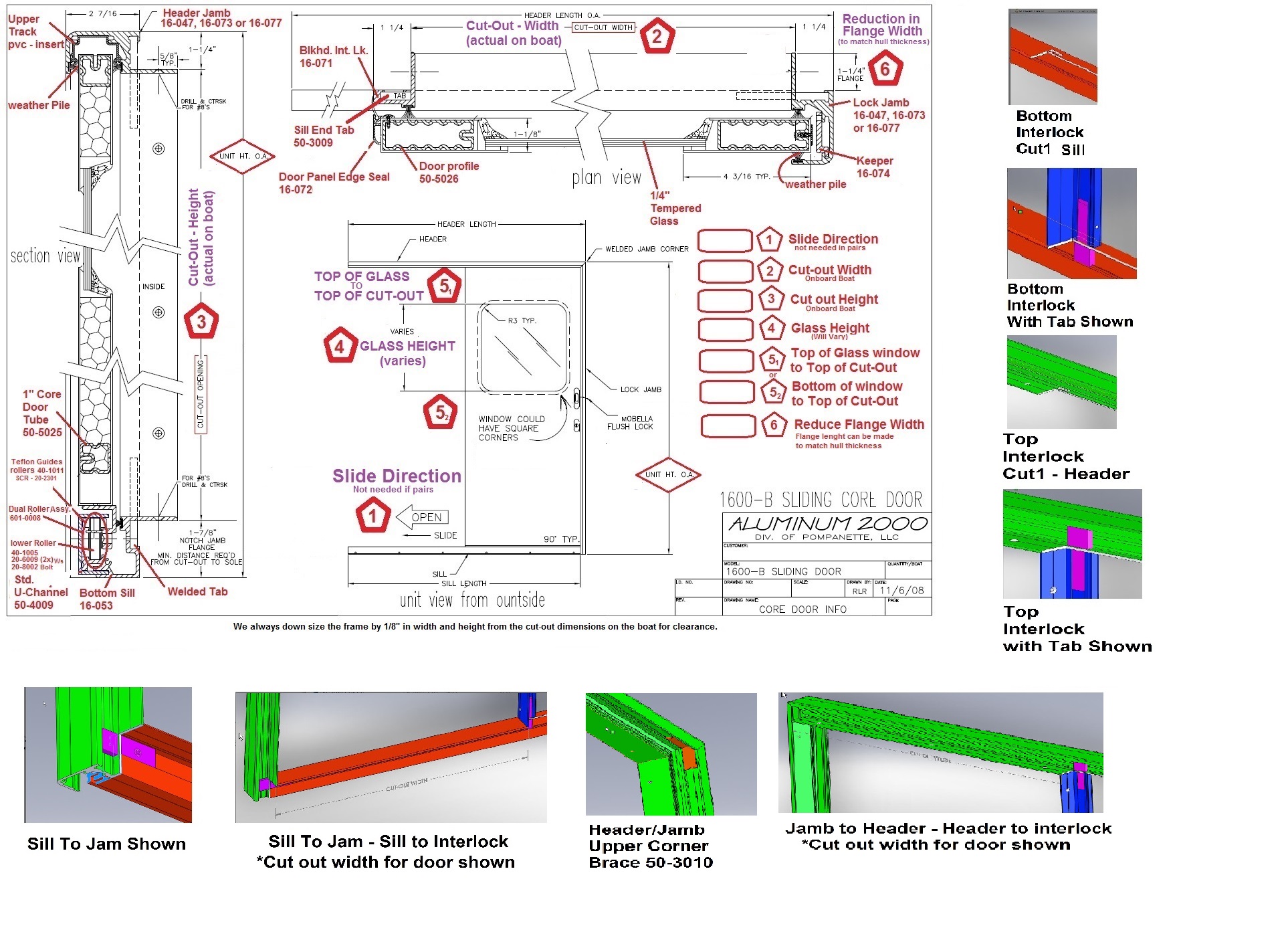

| Part # | Description | Window Type | Glass Thickness | Installation | Flange | Drill & Countersink | Cutout | Header Length | Header Height | Depth | PDF Drawing |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1600-B Single | Left Hand Sliding | Upper 1/2 | 1/4″ (6mm) | Bolt-in Interior Spigot | 1-1/8″ Overlap | #8 | 32″ x 72″ | Cutout + 5-3/4″ | Cutout + 1-7/8″ | 2-7/16″ Off Bulkhead | DOWNLOAD |
| 1600-B XX | Bi-Parting | Full Height | 1/4″ (6mm) | Bolt-in Interior Spigot | Flange Removed | #8 | 72-5/8″ Height | 80-5/8″ | 75-3/4″ | 2-7/16″ Off Bulkhead | DOWNLOAD |
1600-B Sliding Door
Frequent Questions
- Bomar has been the leading manufacturer of marine doors for enthusiasts and builders since 1947. We truly stand behind our products and pride ourselves on our outstanding customer service. All Bomar doors are backed by our 1 year warranty against any manufacturing defects.
- Your marine door(s) purchase comes complete with door skins, locks, glass and door handles. Hardware, spare parts & accessories sold separately.
- Marine doors are safely and neatly packaged for residential or commercial delivery. For large quantities, delivery to a commercial address is highly recommended.
- Yes, Bomar ships products worldwide across the globe. Shipping charges will be determined and billed separately once your order is ready to ship.
- Bomar offers replacement parts such as gaskets, dogs, handles, lenses & more for most doors produced after 1999.
- Explore Spare Parts
- Customers may purchase these replacement items from an authorized dealer. Hatch lifespan will vary case by case depending on environment, use, and individual care.
1600-B Sliding Door
Purchase Options
Bomar, a division of Pompanette, LLC continues trustfully serving the worldwide marine community since 1947. We offer a variety of safe, secure, private and convenient purchasing options for OEM’s, dealers, distributors & end-users.
