The Toughest Inspection Hatches On The Market.
The Commercial Grade Series
Bomar Commercial Grade Series Inspection Hatches are simply put, the toughest inspection hatches to hit the commercial boating market. For nearly three decades Bomar, a division of Pompanette, LLC, has designed and manufactured the finest ports, hatches, windows, and doors for the marine industry. Since the beginning, the Bomar name has been synonymous with innovative design, flawless craftsmanship, and the highest quality materials. You will find that the Commercial Inspection Hatches honor the respected Bomar name.
Commercial Grade Series
Standard Features
The Commercial Series cast inspection hatches by Bomar, featuring:
Download Product Sheet
Download Product Sheet
- Heavy Duty 535 Magnesium Hardened Aluminum
- Lightweight Combined with Strength & Durability
- Natural Brushed Finish
- Built & Tested for Harsh Marine Environments
- Tested to be Watertight, Submerged to 30 FT (10M) Head Pressure Testing
- Ergonomic Design Provides Under-Deck Space Savings
- Allows for 180+ Degrees of Opening Angle
- 316L for Rust & Corrosion Resistance
- Provides Robust Dogging Action
- 20-30% Lighter Than Competitors
- Without Sacrificing Strength & Durability
Commercial Grade Series
Additional Options
Commercial Grade inspection hatch personalization options, for any application.
- 5″ to 24″ to Accommodate Ship Builders & Naval Architects
- Available in Rectangle, Oval and Round Form Factors
- Custom Powdercoating
- CE Approvals
- Bomar Spare Parts & Installation Accessories Readily Available
Commercial Grade Series
Key Materials
Quality construction, built to last at sea.
- Bomar uses 535 magnesium hardened aluminum to construct our Commercial Grade Series inspection hatches. The raw almag-35 is heated to 1100 degrees F at the Bomar foundry and is then melted and poured into our proprietary cast molds.
- The Commercial Grade Series inspection hatches are professionally assembled in-house with 316L, marine grade, stainless steel T-handle & fasteners. Stainless steel is ideal for harsh marine environments due to it’s rust & corrosion resistance, strength and luster.
Bomar Commercial Grade Series
Inspection Hatch Size Chart
| Part # | I.D | O.D | Hole Cut Out | Style | Shape | Weight (lbs) | Color | PDF Drawing |
|---|---|---|---|---|---|---|---|---|

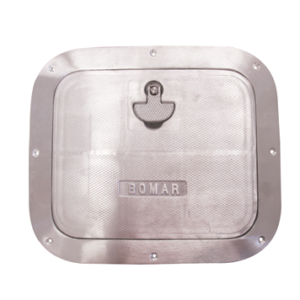

| 4812 | 11 1/8″ x 8 13/16″ (283 x 224 mm) | 15 5/16″ x 13 1/16″ (389 mm x 335 mm) | 12 7/8″ x 10 3/4″ (327 mm x 273 mm) | T-Handle | Rectangle | 7 | Cast Aluminum | DOWNLOAD |

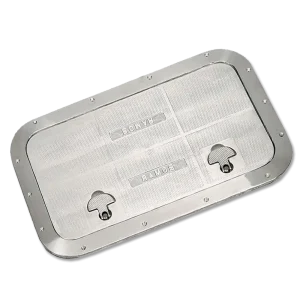

| 41020 | 19 1/4″ x 10 1/16″ (489 x 256 mm) | 24 7/16″ x 14 7/16″ (621 mm x 367 mm) | 21″ x 12″ (533 mm x 304 mm) | T-Handle | Rectangle | 12 | Cast Aluminum | DOWNLOAD |
| 41416 | 15 3/4″ x 13 9/16″ (400 x 344 mm) | 20 1/8″ x 18 1/8″ (511 mm x 460 mm) | 17 5/8″ x 15 11/16″ (448 mm x 398 mm) | T-Handle | Rectangle | 12 | Cast Aluminum | DOWNLOAD |

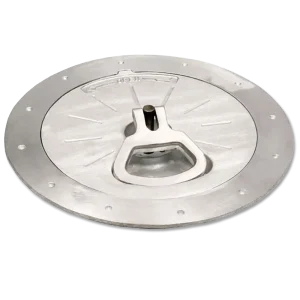

| 4B08 | 8″ (204 mm) | 12″ (305 mm) | 10 1/4″ (260 mm) | Bolt Down | Round | 7 | Cast Aluminum | DOWNLOAD |
| 4B1524 | 15″ x 24″ (400 x 344 mm) | 22 5/8″ x 31 1/4″ (575 mm x 795 mm) | 19 3/8″ x 28 1/4″ (495 mm x 720 mm) | Bolt Down | Oval | 30 | Cast Aluminum | DOWNLOAD |
Commercial Grade Series
Frequent Questions
- Bomar is the leading manufacturer of hatches & portlights for enthusiasts and builders since 1947. We truly stand behind our products and pride ourselves on our outstanding customer service. All Bomar hatches are backed by our 1 year warranty against any manufacturing defects.
- Only the individual hatch is included with purchase. Hardware, spare parts & accessories sold separately.
- Hatches are safely and neatly packaged for residential or commercial delivery. For large quantities, delivery to a commercial address is highly recommended.
- Yes, Bomar ships products worldwide across the globe. Shipping charges will be determined and billed separately once your order is ready to ship.
- Bomar offers replacement parts such as gaskets, dogs, handles, lenses & more for most hatches produced after 1999.
- Explore Spare Parts
- Customers may purchase these replacement items from an authorized dealer. Hatch lifespan will vary case by case depending on environment, use, and individual care.
Commercial Grade Series
Purchase Options
Purchase Commercial Grade Series cast inspection hatches by Bomar.
Find A Dealer
Find A Dealer
Bomar, a division of Pompanette, LLC continues trustfully serving the worldwide marine community since 1947. We offer a variety of safe, secure, private and convenient purchasing options for OEM’s, dealers, distributors & end-users.
