The Finest Molded Portlights
The Gray Series
Bomar 2000 Series extruded portlights are recognized on the worldwide seas for quality, durability and aesthetic appeal. For nearly three decades Bomar, a division of Pompanette, LLC, has designed and manufactured the finest ports, hatches, windows, and doors for the marine industry. Since the beginning, the Bomar name has been synonymous with innovative design, flawless craftsmanship, and the highest quality materials. We are confident that the 2000 Series Extruded Portlights will not disappoint.
Gray Series Port Windows
Standard Features
The Gray Series molded plastic portlights by Bomar, featuring:
Download Product Sheet
Download Product Sheet
- Heavy Duty, Injection Molded Plastic (Polypropylene) Construction
- Large Viewing Area
- Opening & Fixed (Non-Opening) Styles
- Built & Tested for Harsh Marine Environments
- 316L for Rust & Corrosion Resistance
- For Fast & Convenient Opening/Closing
- Heavy Duty, Smoked Acrylic Standard
- Maximum Clarity & Durability
Gray Series Port Windows
Additional Options
Gray Series molded plastic portlight personalization options, for any application.
- Hull Thickness: 1/4″ to 1 19/50″ to Accomodate Boat Builders & Enthusiasts
- Available in Elliptical, Oval and Rectangle Form Factors
- CE Approvals
- Bomar Spare Parts & Installation Accessories Readily Available
Gray Series Port Windows
Key Materials
Quality construction, built to last at sea.
- The Gray Series Molded portlights are constructed from Pompanette’s proprietary engineering grade polypropylene resins. Polypropylene is ideal for harsh marine environments due to it’s lightweight, structural rigidity and long lasting durability.
- The Gray Series Molded portlights are professionally assembled in-house with 316L, marine grade, stainless steel fasteners. Stainless steel is ideal for harsh marine environments due to it’s rust & corrosion resistance, strength and luster.
- The Gray Series Molded portlights come equipped with a smoked polycarbonate Lexan acrylic lenses as standard. Polycarbonate acrylic lenses provide excellent clarity and durability in harsh marine environments.
Bomar Gray Series Molded Plastic

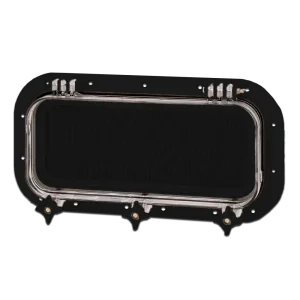

Portlight Size Chart
Note: AD = Angled Drain | SD = Straight Drain
| Part # | Style | O.D. of Finishing Ring | Hole Cut Out | Spigot Length | Weight (lbs) | Shape | PDF Drawing |
|---|---|---|---|---|---|---|---|
| 515 | Opening | 5 7/8″ x 16 1/2″ (149 mm x 419 mm) | 3 5/8″ x 14 /14″ (92 mm x 362 mm) | 1 1/8″ (29 mm) | 2 | Elliptical | DOWNLOAD |
| 626 | Opening | 8 3/16″ x 18 3/8″ (208 mm x 467 mm) | 6″ x 16″ (152 mm x 406 mm) | 1 1/4″ (32 mm) | 3 | Elliptical | DOWNLOAD |
| 414OV | Opening | 8″ x 17 5/8″ (203 mm x 448 mm) | 5 3/4″ x 15 3/8″ (154 mm x 391 mm) | 1 3/16″ (30 mm) | 3 | Oval | DOWNLOAD |
| 310 | Opening | 5 1/2″ x 12 3/8″ (140 mm x 314 mm) | 3 1/2″ x 10 3/8″ (89 mm x 263 mm) | 1″ (25 mm) | 2 | Rectangle | DOWNLOAD |
| 410-SD | Opening | 6 9/16″ x 12 1/2″ (167 mm x 318 mm) | 4 5/8″ x 10 7/16″ (117 mm x 265 mm) | 1 15/16″ (49 mm) | 2.5 | Rectangle | DOWNLOAD |
| 414-AD | Opening | 6 1/2″ x 16 1/2″ (165 mm x 419 mm) | 4 1/2″ x 14 1/2″ (114 mm x 368 mm) | 1 7/8″ (48 mm) | 3 | Rectangle | DOWNLOAD |
| 414-SD | Opening | 6 1/2″ x 16 1/2″ (165 mm x 419 mm) | 4 1/2″ x 14 1/2″ (114 mm x 368 mm) | 1 7/8″ (48 mm) | 3 | Rectangle | DOWNLOAD |
| 512-AD | Opening | 7 13/16″ x 14 11/16″ (198 mm x 373 mm) | 5 1/2″ x 12 1/2″ (140 mm x 318 mm) | 2 3/8″ (60 mm) | 3.5 | Rectangle | DOWNLOAD |
| 715-AD | Opening | 9 5/8″ x 17 3/4″ (244 mm x 451 mm) | 7 9/16″ x 15 1/2″ (192 mm x 394 mm) | 1 7/8″ (48 mm) | 4.5 | Rectangle | DOWNLOAD |
| 724-AD | Opening | 9 7/8″ x 26 3/4″ (251 mm x 679 mm) | 7 9/16″ x 24 1/2″ (192 mm x 622 mm) | 1 7/8″ (48 mm) | 8 | Rectangle | DOWNLOAD |
| 818-AD | Opening | 10 11/16″ x 20 5/8″ (271 mm x 524 mm) | 8 1/2″ x 18 7/16″ (216 mm x 468 mm) | 1 7/8″ (48 mm) | 5.5 | Rectangle | DOWNLOAD |

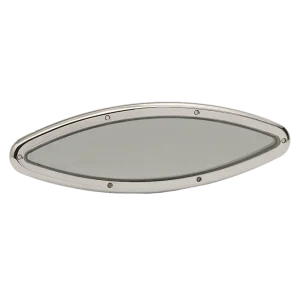

Fixed with Stainless Steel Exterior
| Part # | Style | O.D. of Finishing Ring | Hole Cut Out | Weight (lbs) | Shape | PDF Drawing |
|---|---|---|---|---|---|---|
| 515-10 | Fixed | 4 7/8″ x 15 5/8″ (124 mm x 397 mm) | 3 1/2″ x 14″ (89 mm x 356 mm) | N/A | Elliptical | DOWNLOAD |
| 518-10 | Fixed | 6 1/8″ x 19 1/2″ (156 mm x 495 mm) | 4 1/2″ x 17 7/8″ (114 mm x 454 mm) | N/A | Elliptical | DOWNLOAD |
| 616-10 | Opening | 7 3/4″ x 18″ (197 mm x 457 mm) | 5 3/4″ x 15 3/4″ (146 mm x 400 mm) | N/A | Rectangle | DOWNLOAD |
Gray Series Port Windows
Frequent Questions
- Bomar is the leading manufacturer of hatches & portlights for enthusiasts and builders since 1947. We truly stand behind our products and pride ourselves on our outstanding customer service. All Bomar portlights are backed by our 1 year warranty against any manufacturing defects.
- Your portlight purchase comes complete with trim ring, screen. Hardware, spare parts & accessories sold separately
- Portlights are safely and neatly packaged for residential or commercial delivery. For large quantities, delivery to a commercial address is highly recommended.
- Yes, Bomar ships products worldwide across the globe. Shipping charges will be determined and billed separately once your order is ready to ship.
- Bomar offers replacement parts such as gaskets, dogs, handles, lenses & more for most portlights produced after 1999. Customers may purchase these replacement items from an authorized dealer. Portlight lifespan will vary case by case depending on environment, use, and individual care.
Gray Series Port Hole Windows
Purchase Options
Purchase Gray Series molded plastic portlights by Bomar.
Find A Dealer
Find A Dealer
Bomar, a division of Pompanette, LLC continues trustfully serving the worldwide marine community since 1947. We offer a variety of safe, secure, private and convenient purchasing options for OEM’s, dealers, distributors & end-users.
