The Finest Extruded Aluminum & Acrylic Portlights
The Flush MOunt Series

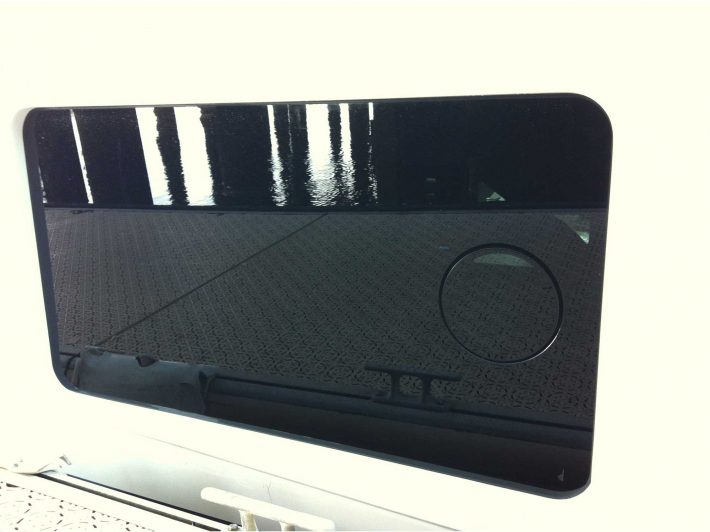

The Flush Mount Series of portlights is Bomar’s extruded aluminum & acrylic series of portlights that install via a direct bond to your mounting surface. This eliminates the need for fasteners and and all associated issues. We have incorporated a deep return spigot for today’s thicker mounting applications. This is a value-added series, of a true frameless, exterior appearance, with no mounting fasteners. It is designed using a composite base frame of stainless steel hardware to meet CE, all side area 2B, cabin side, and center consoles area 3. We have an existing library of round, oval and rectangle shapes and sizes.
Flush Series Port Windows
Standard Features
The Flush Mount Series portlights by Bomar, featuring:
Download Product Sheet
Download Product Sheet
- Clean, Flush Profile Design
- Direct Glaze To Surface
- Keeps Your Ship Hull Looking Seamless
- Heavy Duty, Extruded Aluminum Construction
- Thick, Heavy Duty, Acrylic Construction
- EPDM Gasket System
- Built & Tested for Harsh Marine Environments
- Quality Cam Dogs
- 316L for Rust & Corrosion Resistance
- For Fast & Convenient Opening/Closing
- Smoked Acrylic Standard
- Tempered Glass Available
- Maximum Clarity & Durability
Flush Series Port Windows
Additional Options
Flush Series extruded/acrylic portlight personalization options, for any application.
- Custom Sizing to Accommodate OEM’s & Boat Builders Alike
- Available in Round, Oval, Square, Rectangle and Custom Form Factors
- Decorative Trim Rings & Screens
- CE & ABYC Approvals
- Custom Powder Coating
- Bomar Spare Parts & Installation Accessories Readily Available
Flush Series Port Windows
Key Materials
Quality construction, built to last at sea.
- Bomar uses extruded aluminum to construct our Flush Mount Series portlights. The extrusions are made in-house at our New Hampshire USA facility.
- The Flush Mount Series portlights may also be constructed of acrylic, alongside smoked polycarbonate acrylic lenses as standard. Polycarbonate acrylic lenses provide excellent clarity and durability in harsh marine environments.
- The Flush Mount Series portlights are professionally assembled in-house with 316L, marine grade, stainless steel fasteners. Stainless steel is ideal for harsh marine environments due to it’s rust & corrosion resistance, strength and luster.
Bomar Flush Mount Series
Portlight Size Chart
Aluminum
| Part # | Style | Hole Cut Out | Shape | PDF Drawing |
|---|---|---|---|---|
| NO-0020029 | Opening | 20 1/8″ x 5 1/2″ (511 mm x 139 mm) | Rectangle | DOWNLOAD |
| NO–0020002 | Opening | 16 3/8″ x 9 1/4″ (415 mm x 234 mm) | Rectangle | DOWNLOAD |
| NO–0020003 | Opening | 26 3/8″ x 9 1/4″ (669 mm x 234 mm) | Rectangle | DOWNLOAD |
| NO–0020010 | Opening | 26 7/8″ x 7 5/8″ (682 mm x 193 mm) | Rectangle | DOWNLOAD |
| NO–0003 | Opening | 6″ x 13″ (152 mm x 330 mm) | Rectangle | DOWNLOAD |
| NO–0005 | Opening | 10″ (254 mm) | Circle | DOWNLOAD |
| NO–0006 | Opening | 8 1/8″ (206 mm) | Circle | DOWNLOAD |
Acrylic
| Part # | Style | Hole Cut Out | O.D. | Shape | PDF Drawing |
|---|---|---|---|---|---|

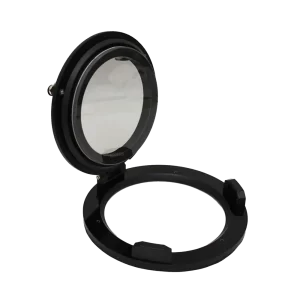

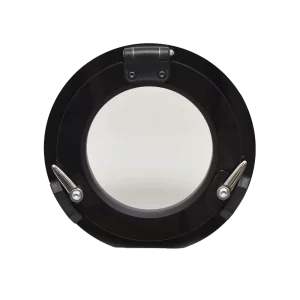

| NOA-0030013 | Opening | 5 1/2″ (139 mm) | 8 1/8″ (206 mm) | Circle | DOWNLOAD |
| NOA-0030014 | Opening | 9 5/8″ (245 mm) | 12 1/4″ (311 mm) | Circle | DOWNLOAD |

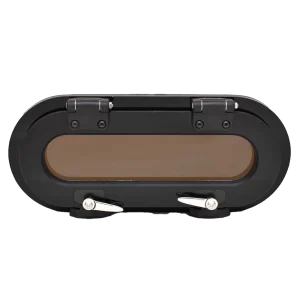

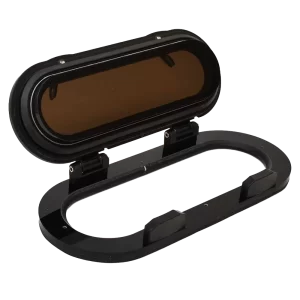

| NOA-0030015 | Opening | 5 7/8″ x 12 7/8″ (149 mm x 327 mm) | 8 1/2″ x 15 1/2″ (215 mm x 393 mm) | Oval | DOWNLOAD |
| NOA-0030016 | Opening | 3 7/16″ x 16 3/8″ (87 mm x 415 mm) | 6 1/16″ x 19″ (153 mm x 482 mm) | Rectangle | DOWNLOAD |
Customizations available upon request.
Flush Series Port Windows
Frequent Questions
- Bomar is the leading manufacturer of hatches & portlights for enthusiasts and builders since 1947. We truly stand behind our products and pride ourselves on our outstanding customer service. All Bomar portlights are backed by our 1 year warranty against any manufacturing defects.
- Your portlight purchase comes complete with trim ring, screen. Hardware, spare parts & accessories sold separately
- Portlights are safely and neatly packaged for residential or commercial delivery. For large quantities, delivery to a commercial address is highly recommended.
- Yes, Bomar ships products worldwide across the globe. Shipping charges will be determined and billed separately once your order is ready to ship.
- Bomar offers replacement parts such as gaskets, dogs, handles, lenses & more for most portlights produced after 1999. Customers may purchase these replacement items from an authorized dealer. Portlight lifespan will vary case by case depending on environment, use, and individual care.
Flush Series Port Hole Windows
Purchase Options
Purchase Flush Mount Series extruded or acrylic portlights by Bomar.
Find A Dealer
Find A Dealer
Bomar, a division of Pompanette, LLC continues trustfully serving the worldwide marine community since 1947. We offer a variety of safe, secure, private and convenient purchasing options for OEM’s, dealers, distributors & end-users.
