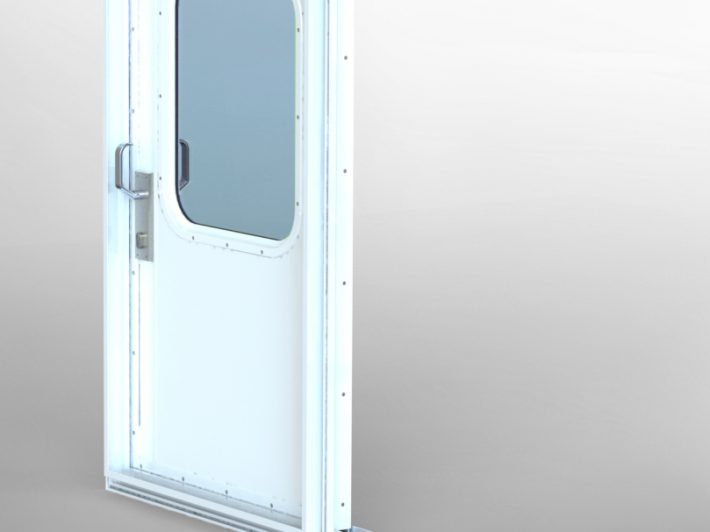

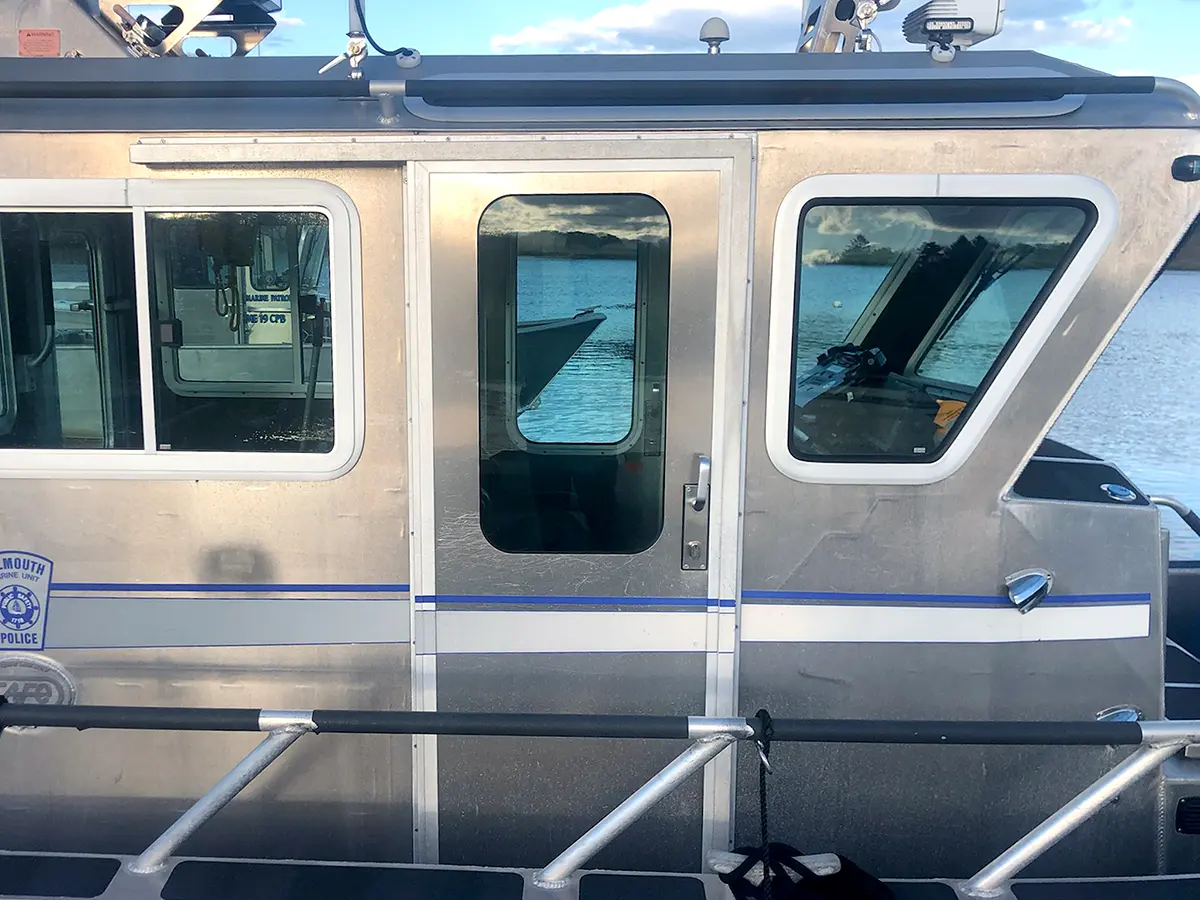

The Bomar 1600-CB Sliding Door delivers heavy-duty reliability built specifically for commercial marine applications. Field-tested in the harsh North Atlantic and equipped with standard recreational weathertight sealing, it features:
Bomar 1600-CB
Standard Features
Construction & Design
- Marine Grade Aluminum
- Interlocking door panel to frame joint

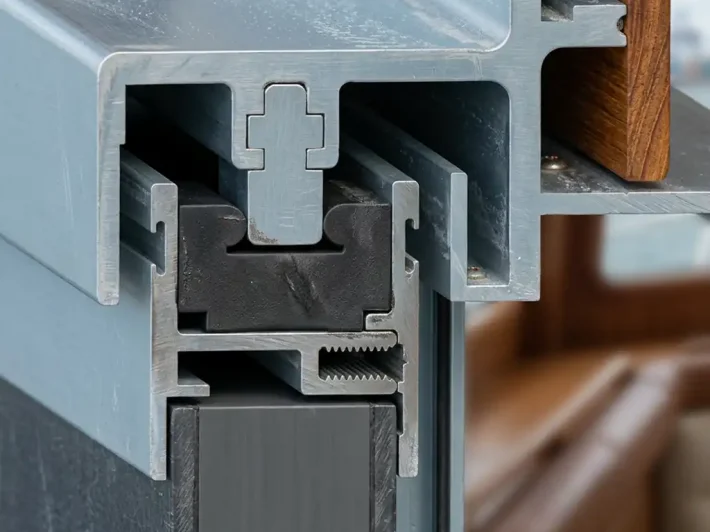

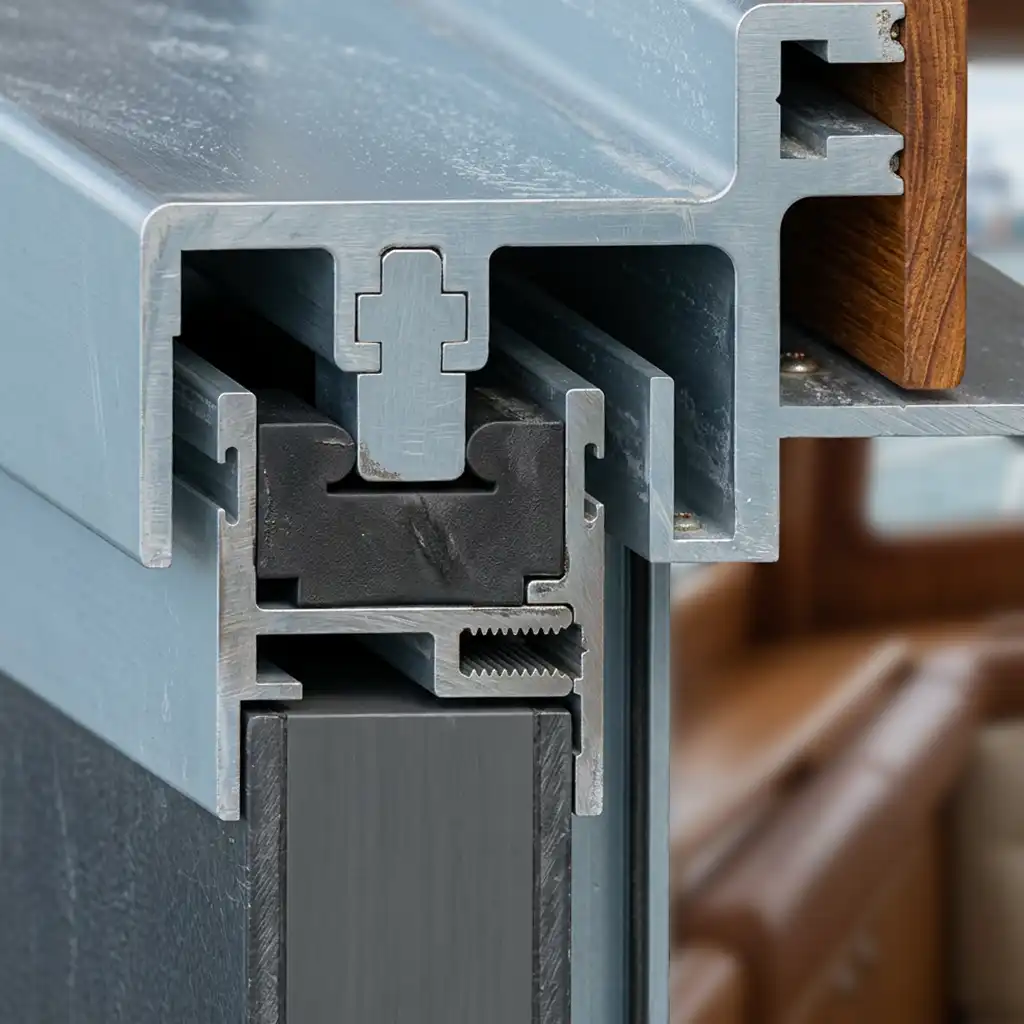

- TrioVing 5382 Lockset Dupont Delin® acetal resin tracks and glides
- Drains for water egress

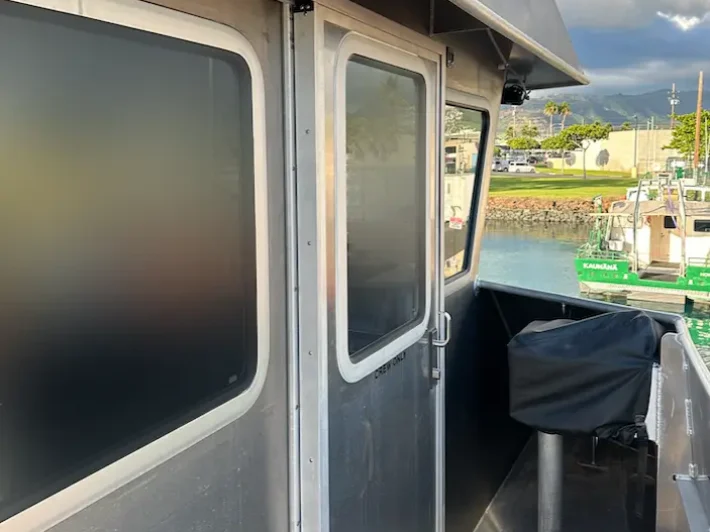

- Direct glazed 6mm tempered glass: Clear, Gray or Light Green Tint Mill Finish
Bomar 1600-CB
Additional Options
Personalization Options

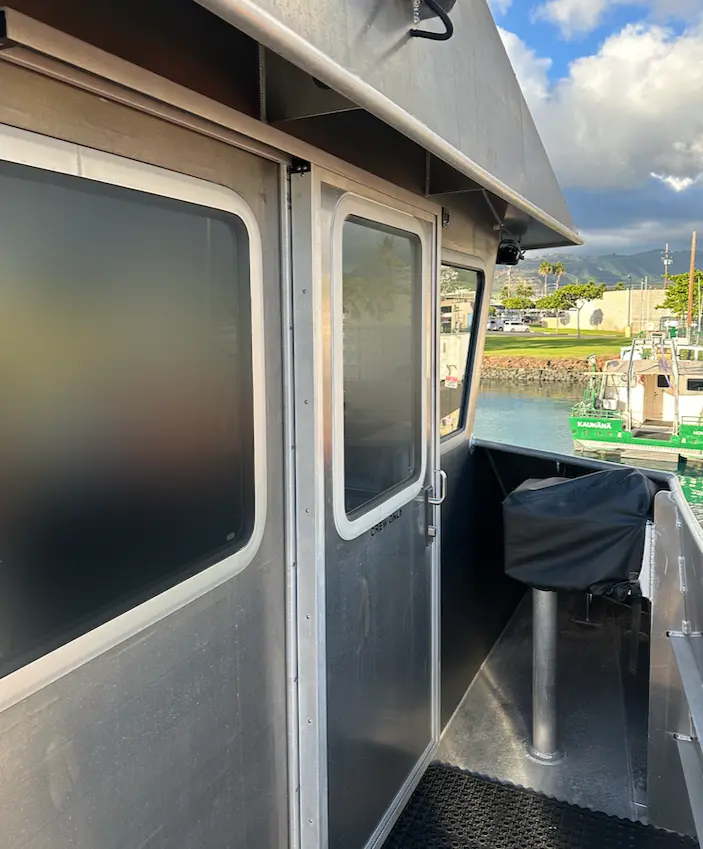

- Available Finishes: Powder Coated Finish
- Custom Sized Windows
- Interior Trim
- Mobella Flush Mount Lockset
- Mobelle Pull Handle
Bomar 1600-CB
Configurations
Quality construction, built to last at sea.
Door Opening Configurations

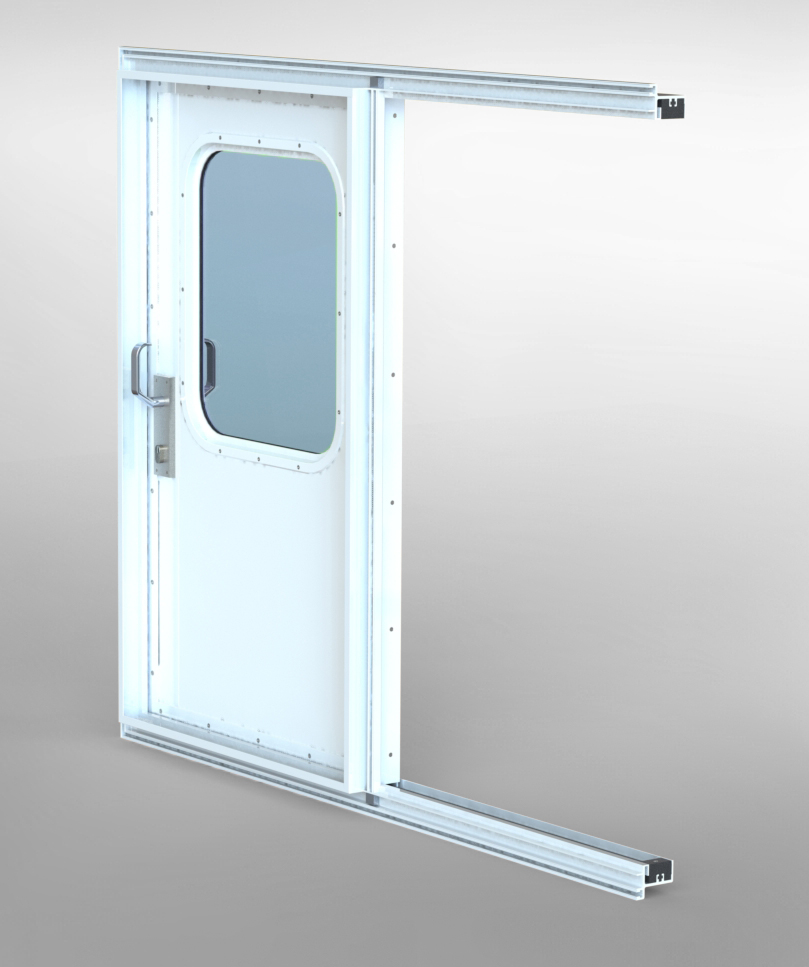

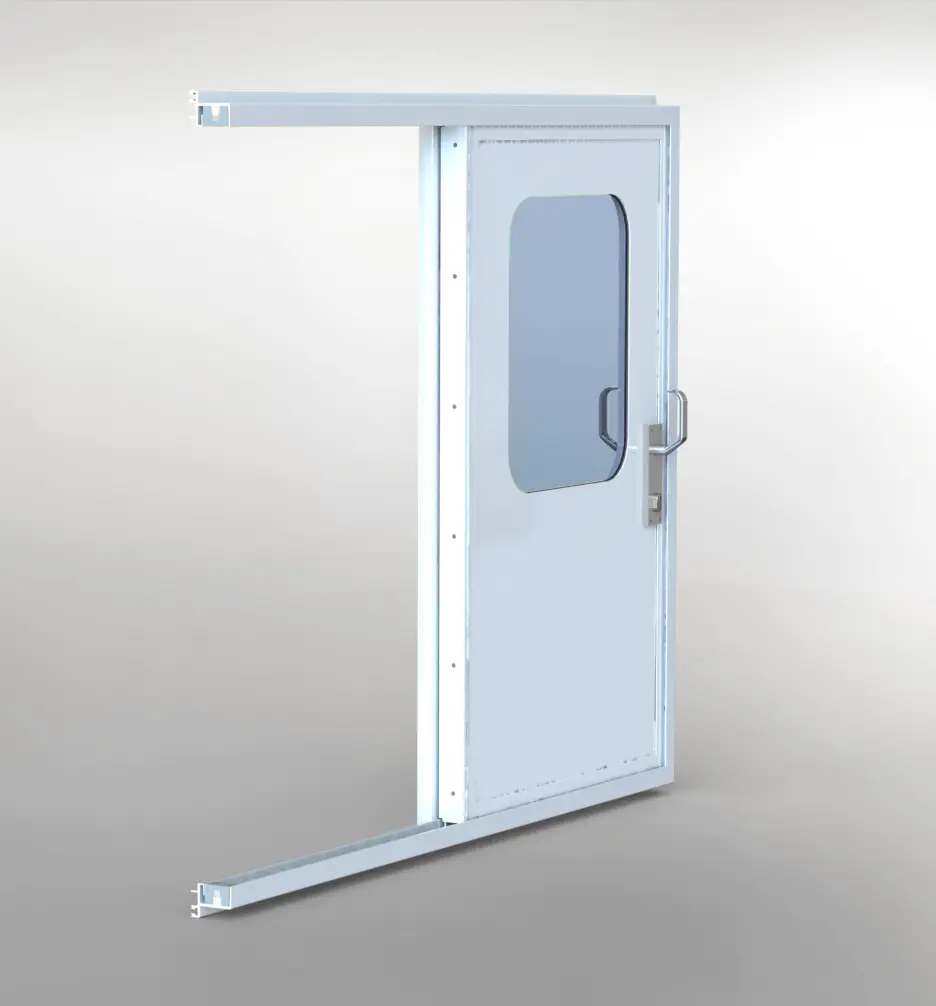

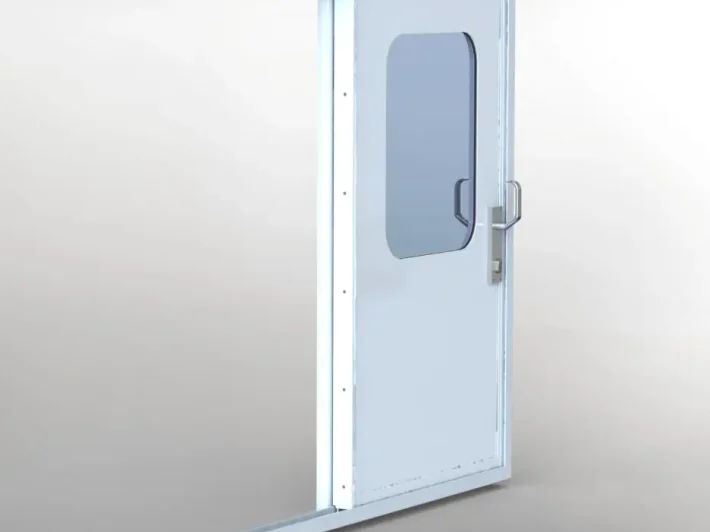

- Single Slider (X)
- Bi-Parting (X-X)
Bomar 1600-CB
Door Size Reference Chart
| Part # | Description | Window Type | Glass Thickness | Installation | Flange | Drill & Countersink | Cutout | Clear Opening Width x Height | Depth | PDF Drawing | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1600-CB Single | Left Hand Sliding | Upper 1/2 Glass | 1/4″ (6mm) | Bolt-in Flange | 1-9/16″ Overlap | #10 | 32″ x 53-5/8″ | Cutout – 6-11/16″ (25-5/16″ x 52-5/8″ | Cutout + 1-7/8″ | 3-3/32″ Off Bulkhead | DOWNLOAD |
1600-CB Sliding Door
Frequent Questions
- Bomar has been the leading manufacturer of marine doors for enthusiasts and builders since 1947. We truly stand behind our products and pride ourselves on our outstanding customer service. All Bomar doors are backed by our 1 year warranty against any manufacturing defects.
- Your marine door(s) purchase comes complete with door skins, locks, glass and door handles. Hardware, spare parts & accessories sold separately.
- Marine doors are safely and neatly packaged for residential or commercial delivery. For large quantities, delivery to a commercial address is highly recommended.
- Yes, Bomar ships products worldwide across the globe. Shipping charges will be determined and billed separately once your order is ready to ship.
- Bomar offers replacement parts such as gaskets, dogs, handles, lenses & more for most doors produced after 1999.
- Explore Spare Parts
- Customers may purchase these replacement items from an authorized dealer. Hatch lifespan will vary case by case depending on environment, use, and individual care.
1600-CB Sliding Door
Purchase Options
Bomar, a division of Pompanette, LLC continues trustfully serving the worldwide marine community since 1947. We offer a variety of safe, secure, private and convenient purchasing options for OEM’s, dealers, distributors & end-users.
