The Finest Molded Deck Plates
The Gray Series
Protect your boats critical components and allow easy service access with Bomar’s lineup of durable deck plates, trusted by boaters worldwide. Our deck plates are o-ring sealed, and made of durable UV stabilized resin plastic for UV damage protection against the harshest climates. Choose from 3 deck plate types: Screw In, Locking Center, and Press in. Available in various sizes ranging from 4″ to 10″ and offered in Black, White, Stark White. Non-Skid or Smooth Finish available for most sizes.
Gray Series
Standard Features
The Gray Series plastic deck plates by Bomar, featuring:
Download Product Sheet
Download Product Sheet
- Injection Molded High Impact UV Stable Polypropylene
- Built & Tested for Harsh Marine Environments
- No Visible Exterior Screws
- Low Profile Design
- Clean Textured Lid
- For Maximum Sealing Power
Gray Series
Additional Options
Gray Series deck plate personalization options, for any application.
- 4″ to 10″ Diameters to Accommodate Boat Builders & Enthusiasts
- Available in Round (Circle) Form Factors
- Available in Screw-In, Press-In & Locking Latch Styles

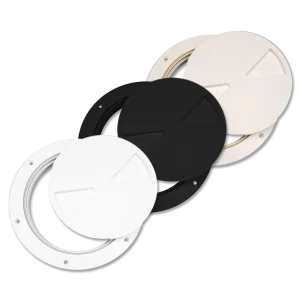

- Black, Off-White and Stark White Color Options
- CE Approvals
- Bomar Spare Parts & Installation Accessories Readily Available
Gray Series
Key Materials
Quality construction, built to last at sea.
- The Gray Series deck plates are constructed from Bomar’s proprietary engineering grade polypropylene resins. Polypropylene is ideal for harsh marine environments due to it’s lightweight, structural rigidity and long lasting durability.
Bomar Gray Series
Deck Plate Size Chart

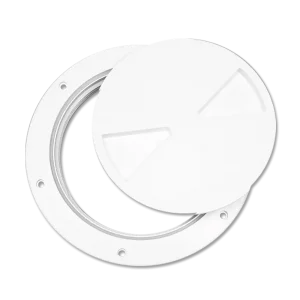

4″ Screw-In Deck Plates, Without Non-Skid
| Part # | I.D | O.D | Hole Cut Out | Style | Shape | Color | PDF Drawing |
|---|---|---|---|---|---|---|---|
| 800 | 3 7/8″ (98 mm) | 5 3/4″ (146 mm) | 4 1/4″ (108 mm) | Screw In | Circle | Off-White | DOWNLOAD |
| 800W | 3 7/8″ (98 mm) | 5 3/4″ (146 mm) | 4 1/4″ (108 mm) | Screw In | Circle | Stark-White | DOWNLOAD |
| 802 | 3 7/8″ (98 mm) | 5 3/4″ (146 mm) | 4 1/4″ (108 mm) | Screw In | Circle | Black | DOWNLOAD |
6″ Screw-In Deck Plates, Without Non-Skid
| Part # | I.D | O.D | Hole Cut Out | Style | Shape | Color | PDF Drawing |
|---|---|---|---|---|---|---|---|
| 824 | 5 3/4″ (146 mm) | 8 1/16″ (205 mm) | 6 3/8″ (162 mm) | Screw In | Circle | Off-White | DOWNLOAD |
| 824W | 5 3/4″ (146 mm) | 8 1/16″ (205 mm) | 6 3/8″ (162 mm) | Screw In | Circle | Stark-White | DOWNLOAD |
| 825 | 5 3/4″ (146 mm) | 8 1/16″ (205 mm) | 6 3/8″ (162 mm) | Screw In | Circle | Black | DOWNLOAD |
6″ Non-Skid Press-In Deck Plates, Without Non-Skid
| Part # | I.D | O.D | Hole Cut Out | Style | Shape | Color | PDF Drawing |
|---|---|---|---|---|---|---|---|
| 820 | 5 1/4″ (133 mm) | 7 1/2″ (190 mm) | 6 1/2″ (165 mm) | Press In | Circle | Off-White | DOWNLOAD |
| 820W | 5 1/4″ (133 mm) | 7 1/2″ (190 mm) | 6 1/2″ (165 mm) | Press In | Circle | Stark-White | DOWNLOAD |
| 821 | 5 1/4″ (133 mm) | 7 1/2″ (190 mm) | 6 1/2″ (165 mm) | Press In | Circle | Black | DOWNLOAD |
8″ Non-Skid Press-In Deck Plates, Without Non-Skid
| Part # | I.D | O.D | Hole Cut Out | Style | Shape | Color | PDF Drawing |
|---|---|---|---|---|---|---|---|
| 831 | 7 5/8″ (194 mm) | 9 7/16″ (240 mm) | 8″ (203 mm) | Press In | Circle | Off-White | DOWNLOAD |
| 831W | 7 5/8″ (194 mm) | 9 7/16″ (240 mm) | 8″ (203 mm) | Press In | Circle | Stark-White | DOWNLOAD |
| 832 | 7 5/8″ (194 mm) | 9 7/16″ (240 mm) | 8″ (203 mm) | Press In | Circle | Black | DOWNLOAD |

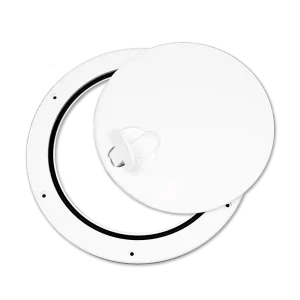

6″ Non-Skid Locking Deck Plates
| Part # | I.D | O.D | Hole Cut Out | Style | Shape | Color | PDF Drawing |
|---|---|---|---|---|---|---|---|
| 836 | 5 3/16″ (132 mm) | 8 3/8″ (213 mm) | 6 3/8″ (162 mm) | Locking | Circle | Off-White | DOWNLOAD |
| 836W | 5 3/16″ (132 mm) | 8 3/8″ (213 mm) | 6 3/8″ (162 mm) | Locking | Circle | Stark-White | DOWNLOAD |
| 837 | 5 3/16″ (132 mm) | 8 3/8″ (213 mm) | 6 3/8″ (162 mm) | Locking | Circle | Black | DOWNLOAD |
8″ Non-Skid Locking Deck Plates
| Part # | I.D | O.D | Hole Cut Out | Style | Shape | Color | PDF Drawing |
|---|---|---|---|---|---|---|---|
| 840 | 7 5/16″ (186 mm) | 10 9/16″ (268 mm) | 8 1/2″ (216 mm) | Locking | Circle | Off-White | DOWNLOAD |
| 840W | 7 5/16″ (186 mm) | 10 9/16″ (268 mm) | 8 1/2″ (216 mm) | Locking | Circle | Stark-White | DOWNLOAD |
| 841 | 7 5/16″ (186 mm) | 10 9/16″ (268 mm) | 8 1/2″ (216 mm) | Locking | Circle | Black | DOWNLOAD |
10″ Non-Skid Locking Deck Plates
Gray Series
Frequent Questions
- Bomar is the leading manufacturer of hatches & portlights for enthusiasts and builders since 1947. We truly stand behind our products and pride ourselves on our outstanding customer service. All Bomar hatches are backed by our 1 year warranty against any manufacturing defects.
- Only the individual deck plate is included with purchase. Hardware, spare parts & accessories sold separately.
- Deck plates are safely and neatly packaged for residential or commercial delivery. For large quantities, delivery to a commercial address is highly recommended.
- Yes, Bomar ships products worldwide across the globe. Shipping charges will be determined and billed separately once your order is ready to ship.
- Bomar offers replacement parts such as gaskets, dogs, handles, lenses & more for most deck plates produced after 1999.
- Explore Spare Parts
- Customers may purchase these replacement items from an authorized dealer. Hatch lifespan will vary case by case depending on environment, use, and individual care.
Gray Series
Purchase Options
Purchase Gray Series deck plates by Bomar.
Find A Dealer
Find A Dealer
Bomar, a division of Pompanette, LLC continues trustfully serving the worldwide marine community since 1947. We offer a variety of safe, secure, private and convenient purchasing options for OEM’s, dealers, distributors & end-users.
