The Finest Extruded Aluminum Portlights
The 2000 Series
Bomar 2000 Series extruded portlights are recognized on the worldwide seas for quality, durability and aesthetic appeal. For nearly three decades Bomar, a division of Pompanette, LLC, has designed and manufactured the finest ports, hatches, windows, and doors for the marine industry. Since the beginning, the Bomar name has been synonymous with innovative design, flawless craftsmanship, and the highest quality materials. We are confident that the 2000 Series Extruded Portlights will not disappoint.

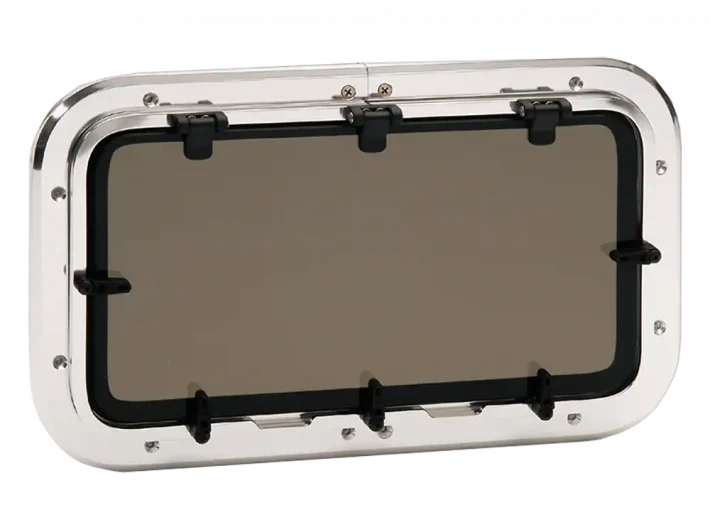

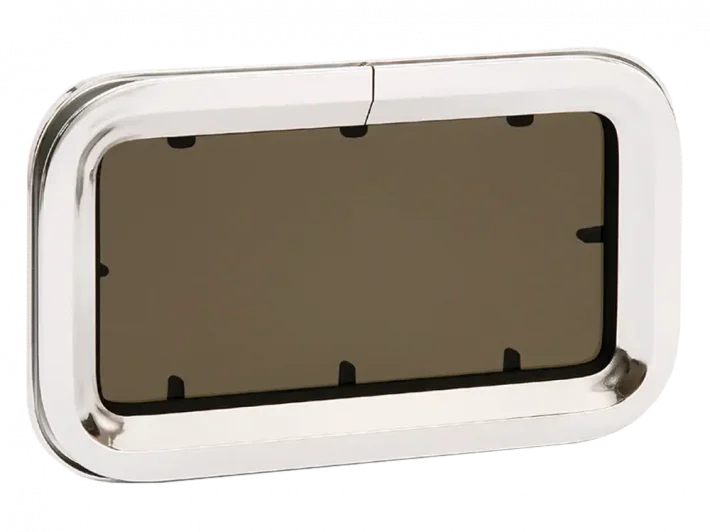

2000 Series Port Windows
Standard Features
The 2000 Series extruded portlights by Bomar, featuring:
Download Product Sheet
Download Product Sheet
- Heavy Duty, Extruded Aluminum Construction
- Clear Anodized
- Opening Style
- Built & Tested for Harsh Marine Environments
- 316L for Rust & Corrosion Resistance
- For Fast & Convenient Opening/Closing
- Heavy Duty, Smoked Acrylic Standard
- Maximum Clarity & Durability
2000 Series Port Windows
Additional Options
2000 Series extruded portlight personalization options, for any application.
- Hull Thickness: 1/4″ to 1 7/16″ to Accomodate Boat Builders & Enthusiasts
- Available in Rectangle Form Factors
- CE Approvals
- Bomar Spare Parts & Installation Accessories Readily Available
2000 Series Port Windows
Key Materials
Quality construction, built to last at sea.
- Bomar uses extruded aluminum to construct our 2000 Series Extruded portlights. Aluminum is ideal for harsh marine environments for it’s lightweight, strength and luster
- The 2000 Series Extruded portlights are professionally assembled in-house with 316L, marine grade, stainless steel fasteners. Stainless steel is ideal for harsh marine environments due to it’s rust & corrosion resistance, strength and luster.
- The 2000 Series Extruded portlights come equipped with a smoked polycarbonate acrylic lenses as standard. Polycarbonate acrylic lenses provide excellent clarity and durability in harsh marine environments.
Bomar 2000 Series Extruded
Portlight Size Chart
| Part # | Style | Clear View | Hole Cut Out | O.D. Port | O.D. Trim | Shape | PDF Drawing |
|---|---|---|---|---|---|---|---|
| 2410 | Opening | 9 9/16″ x 3 11/16″ (243 mm x 94 mm) |
12″ x 6/1/8″ (305 mm x 156 mm) |
12 13/16″ x 6 15/16″ (325 mm x 176 mm) |
12 5/16″ x 7 1/16″ (329 mm x 179 mm) |
Rectangle | DOWNLOAD |
| 2414 | Opening | 13 1/2″ x 3 11/16″ (343 mm x 94 mm) |
15 15/16″ x 6 1/8″ (405 mm x 156 mm) |
16 3/4″ x 6 15/16″ (425 mm x 176 mm) |
16 7/8″ x 7 1/16″<br< (429 mm x 179 mm) | Rectangle | DOWNLOAD |
| 2512 | Opening | 11 5/16″ x 4 3/8″ (287 mm x 111 mm) |
13 3/4″ x 6 13/16″ (349 mm x 173 mm) |
14 9/16″ x 7 5/8″ (370 mm x 194 mm) |
14 11/16″ x 7 3/4″ (373 mm x 197 mm) |
Rectangle | DOWNLOAD |
| 2515 | Opening | 14 7/16″ x 4 5/16″ (367 mm x 110 mm) |
16 7/8″ x 6 3/4″ (429 mm x 171 mm) |
17 11/16″ x 7 9/16″ (449 mm x 192 mm) |
17 13/16″ x 7 11/16″ (452 mm x 195 mm) |
Rectangle | DOWNLOAD |
| 2523 | Opening | 22 1/4″ x 4 5/16″ (565 mm x 110 mm) |
24 11/16″ x 6 3/4″ (627 mm x 171 mm) |
25 1/2″ x 7 9/16″ (648 mm x 192 mm) |
25 5/8″ x 7 11/16″ (651 mm x 195 mm) |
Rectangle | DOWNLOAD |
| 2714 | Opening | 14 5/16″ x 7 1/8″ (364 mm x 181 mm) |
16 3/4″ x 9 9/16″ (425 mm x 243 mm) |
17 9/16″ x 10 3/8″ (446 mm x 264 mm) |
17 11/16″ x 10 1/2 (449 mm x 267 mm) |
Rectangle | DOWNLOAD |
2000 Series Port Windows
Frequent Questions
- Bomar is the leading manufacturer of hatches & portlights for enthusiasts and builders since 1947. We truly stand behind our products and pride ourselves on our outstanding customer service. All Bomar portlights are backed by our 1 year warranty against any manufacturing defects.
- Your portlight purchase comes complete with trim ring, screen. Hardware, spare parts & accessories sold separately
- Portlights are safely and neatly packaged for residential or commercial delivery. For large quantities, delivery to a commercial address is highly recommended.
- Yes, Bomar ships products worldwide across the globe. Shipping charges will be determined and billed separately once your order is ready to ship.
- Bomar offers replacement parts such as gaskets, dogs, handles, lenses & more for most portlights produced after 1999. Customers may purchase these replacement items from an authorized dealer. Portlight lifespan will vary case by case depending on environment, use, and individual care.
2000 Series Port Hole Windows
Purchase Options
Purchase 2000 Series extruded portlights by Bomar.
Find A Dealer
Find A Dealer
Bomar, a division of Pompanette, LLC continues trustfully serving the worldwide marine community since 1947. We offer a variety of safe, secure, private and convenient purchasing options for OEM’s, dealers, distributors & end-users.
