Bomar’s Flagship series of portlights includes our top-of-the-line stainless steel version. Designed to offer sleek attractive styling with the low-maintenance, rugged durability of stainless steel, these portlights include a patented mounting system that makes it both simple to install and completely leak-free.
Quality construction, built to last at sea.
Part # | Style | Clear View | Hole Cut Out | O.D. Port | O.D. Trim | Shape | PDF Drawing |
---|---|---|---|---|---|---|---|
719 | Opening | 14 7/8″ x 5 3/8″ (243 mm x 137 mm) | 18″ x 8 1/2″ (257 mm x 216 mm) | 19″ x 9 1/2″ (483 mm x 241 mm) | 19″ x 19 1/2″ (483 mm x 241 mm) | Rectangle | DOWNLOAD |
716 | Opening | 11 5/8″ x 3 6/8″ (295 mm x 95 mm) | 14 3/4″ x 6 7/8″ (375 mm x 175 mm) | 15 3/4″ x 7 7/8″ (400 mm x 200 mm) | 15 3/4″ x 7 7/8″ (400 mm x 200 mm) | Oval | DOWNLOAD |
717 | Opening | 13 1/8″ x 4 1/8″ (333 mm x 105 mm) | 16 1/4″ x 7 1/4″ (413 mm x 184 mm) | 17 1/4″ x 8 1/4″ (438 mm x 210 mm) | 17 1/4″ x 8 1/4″ (438 mm x 210 mm) | Oval | DOWNLOAD |
720 | Opening | 15 7/8″ x 4 3/8″ (403 mm x 111 mm) | 19″ x 7 1/2″ (483 mm x 191 mm) | 20″ x 8 1/2″ (508 mm x 216 mm) | 20″ x 8 1/2″ (508 mm x 216 mm) | Oval | DOWNLOAD |
722 | Opening | 18 3/8″ x 3 7/8″ (467 mm x 98 mm) | 21 1/2″ x 7″ (546 mm x 178 mm) | 22 1/2″ x 8″ (572 mm x 203 mm) | 22 1/2″ x 8″ (572 mm x 203 mm) | Oval | DOWNLOAD |

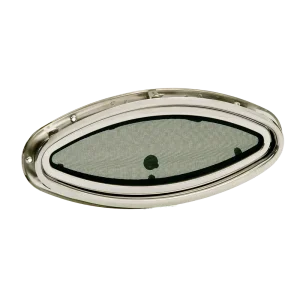

514 | Opening | 10 3/8″ x 1 7/8″ (264 mm x 48 mm) | 13 1/2″ x 5″ (343 mm x 127 mm) | 14 1/2″ x 6″ (368 mm x 152 mm) | 14 1/2″ x 6″ (368 mm x 152 mm) | Elliptical | DOWNLOAD |
516 | Opening | 13 7/8″ x 3 5/8″ (352 mm x 92 mm) | 17″ x 6 3/4″ (432 mm x 171 mm) | 18″ x 7 3/4″ (457 mm x 197 mm) | 18″ x 7 3/4″ (457 mm x 197 mm) | Elliptical | DOWNLOAD |
517 | Opening | 15 3/8″ x 4 4/8″ (391 mm x 114 mm) | 18 1/2″ x 7 5/8″ (470 mm x 194 mm) | 19 1/2″ x 8 5/8″ (495 mm x 219 mm) | 19 1/2″ x 8 5/8″ (495 mm x 219 mm) | Elliptical | DOWNLOAD |
2319 | Opening | 12 1/2″ x 3 5/8″ (318 mm x 92 mm) | 15 5/8″ x 6 3/4″ (397 mm x 171 mm) | 16 5/8″ x 7 3/4″ (422 mm x 197 mm) | 16 5/8″ x 7 3/4″ (422 mm x 197 mm) | Elliptical | DOWNLOAD |
509 P/S | Opening | 6″ x 5 7/8″ (153 mm x 149 mm) | 9 1/8″ x 9″ (233 mm x 229 mm) | 10 2/16″ x 10″ (258 mm x 254 mm) | 10 2/16″ x 10″ (258 mm x 254 mm) | Parallelogram | DOWNLOAD |
511 P/S | Opening | 7 3/8″ x 7 5/8″ (189 mm x 194 mm) | 10 9/16″ x 10 3/4″ (268 mm x 273 mm) | 11 9/16″ x 11 3/4″ (293 mm x 298 mm) | 11 9/16″ x 11 3/4″ (293 mm x 298 mm) | Parallelogram | DOWNLOAD |

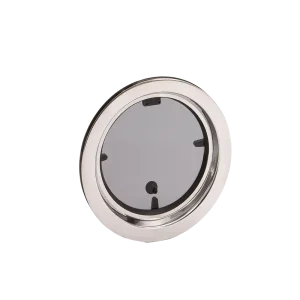

10R | Opening | 5 7/8″ (149 mm) | 9″ (229 mm) | 10″ (254 mm) | 10″ (254 mm) | Circle | DOWNLOAD |
12R | Opening | 7 7/8″ (200 mm) | 11″ (279 mm) | 12″ (305 mm) | 12″ (305 mm) | Round | DOWNLOAD |
