The Finest Cast Aluminum Hatches
The 190 Series Cast

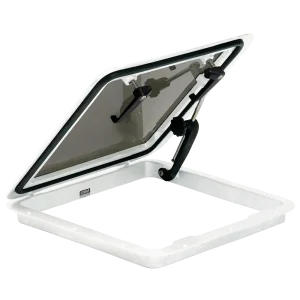

Bomar 190 Series Cast aluminum hatches are built to withstand the harsh seas. For nearly three decades Bomar, a division of Pompanette, LLC, has designed and manufactured the finest ports, hatches, windows, and doors for the marine industry. Since the beginning, the Bomar name has been synonymous with innovative design, flawless craftsmanship, and the highest quality materials. We are certain that the 190 Series Cast Deck Hatches are a testament to the Bomar brand name.
190 Series Cast
Standard Features
The 190 Series cast deck hatches by Bomar, featuring:
Download Product Sheet
Download Product Sheet
- Heavy Duty Aluminum/Magnesium Construction
- Lightweight Combined with Strength & Durability
- Built & Tested for Harsh Marine Environments
- 316L for Rust & Corrosion Resistance
- For Fast & Convenient Opening/Closing
- Low Profile
- Overall Height is Approximately 1″
- Built & Tested for Harsh Marine Environments
- Smoke Tinted Lexan Acrylic Standard
- Maximum Clarity & Durability
190 Series Cast
Additional Options
190 Series Cast personalization options, for any application.
- 10″ to 28″ to Accomodate Boat Builders & Enthusiasts
- Available in Square and Rectangle Form Factors
- Double Opening/Lazarette or Inside/Outside Opening Available On Some Models
- Polished or Anodized Finish
- CE Approvals
- Trim Ring and Screens
- SeaBreeze Sunshade Compatible
- Bomar Spare Parts & Installation Accessories Readily Available
190 Series Cast
Key Materials
Quality construction, built to last at sea.
- Bomar uses 535 magnesium hardened aluminum to construct our 190 Series Cast hatches. The raw almag-35 is heated to 1100 degrees F at the Bomar foundry and is then melted and poured into our proprietary cast molds.
- The 190 Series Cast hatches are professionally assembled in-house with 316L, marine grade, stainless steel fasteners. Stainless steel is ideal for harsh marine environments due to it’s rust & corrosion resistance, strength and luster.
- The 190 Series Cast hatches come equipped with a smoked polycarbonate Lexan acrylic lenses as standard. Polycarbonate acrylic lenses provide excellent clarity and durability in harsh marine environments.
Bomar 190 Series Cast
Deck Hatch Size Chart
| Part # | Hole Cut Out | O.D. of Deck Flange | O.D. of Lid | Spigot Length | Cut Out Radius | Shape | Weight (lbs) | Trim Ring | Extruded Screen | PDF Drawing |
|---|---|---|---|---|---|---|---|---|---|---|
| C188 | 10″ x 10″ (254 mm x 254 mm) | 11 1/2” x 11 3/4” (280 mm x 293 mm) | 11 15/16” x 12” (303 mm x 305 mm) | 1-1/4″ | 3/4″ | Square | 10 | CT188 | CS188 | DOWNLOAD |
| C189 | 16 1/2” x 16 1/2” (420 mm x 420 mm) | 18 1/8 x 18 3/8” (453 mm x 459 mm) | 18 7/16” x 18 1/2” (468 mm x 470 mm) | 1-1/4″ | 11/8″ | Square | 18 | CT189 | CS189 | DOWNLOAD |
| C190 | 22 3/16” x 22 3/16” (564 mm x 564 mm) | 24 5/8” x 24 5/8” (625 mm x 625 mm) | 25 7/8” x 25 7/8” (657 mm x 657 mm) | 1-1/2″ | 2-3/4″ | Square | 27 | CT190 | CS190 | DOWNLOAD |
| C191 | 13 1/8” x 13 1/8” (333 mm x 333 mm) | 15” x 15” (381 mm x 381 mm) | 15 3/8” x 15 3/8” (390 mm x 390 mm) | 1-1/4″ | 1-1/8″ | Square | 14 | CT191 | CS191 | DOWNLOAD |
| C192 | 24” x 28” (610 mm x 710 mm) | 27” x 30 3/4” (685 mm x 780 mm) | 28” x 32” (711 mm x 813 mm) | 1-1/2″ | 2-3/4″ | Square | 30 | N/A | N/A | DOWNLOAD |
| C193 | 20” x 20” (510 mm x 510 mm) | 22 1/2” x 22 1/2” (572 mm x 572 mm) | 23” x 23” (584 mm x 584 mm) | 1-1/2″ | 2-3/4″ | Square | 25 | CT193 | NS193 | DOWNLOAD |
190 Series Cast
Frequent Questions
- Bomar is the leading manufacturer of hatches & portlights for enthusiasts and builders since 1947. We truly stand behind our products and pride ourselves on our outstanding customer service. All Bomar hatches are backed by our 1 year warranty against any manufacturing defects.
- Only the individual hatch is included with purchase. Hardware, Spare parts & accessories separately.
- Hatches are safely and neatly packaged for residential or commercial delivery. For large quantities, delivery to a commercial address is highly recommended.
- Yes, Bomar ships products worldwide across the globe. Shipping charges will be determined and billed separately once your order is ready to ship.
- Bomar offers replacement parts such as gaskets, dogs, handles, lenses & more for most hatches produced after 1999.
- Explore Spare Parts
- Customers may purchase these replacement items from an authorized dealer. Hatch lifespan will vary case by case depending on environment, use, and individual care.
