The Finest Extruded Aluminum Hatches
The A&P Series Low Profile

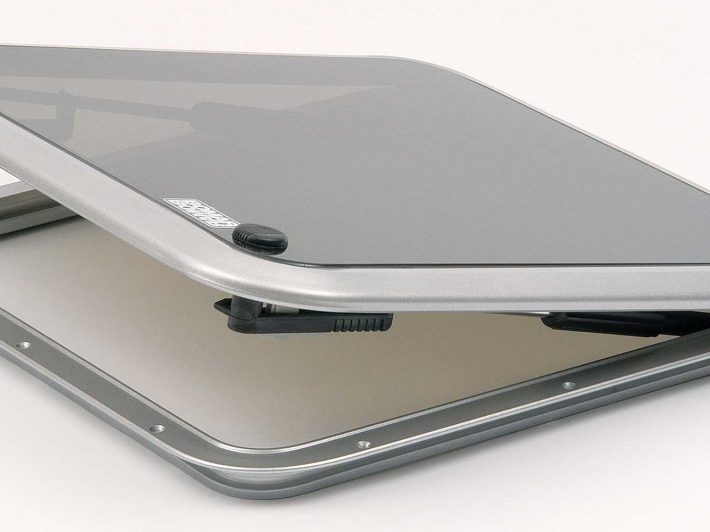

Bomar A&P 1000 Series Low Profile hatches combine style with function and performance. Bomar low profile hatches are the standard for the majority of quality boat builders throughout the world. The reason? These stylish, high performance hatches combine sleek design with unsurpassed functionality. Best of all, these low profile hatches are available in the largest selection of shapes and sizes of any hatch line on the market, from traditional deck hatches to larger fly bridge access doors. You can specify these hatches in a variety of finishes, including anodized, power coated, and polished aluminum.
A&P Series Low profile
Standard Features
The A&P Series Low Profile deck hatches by Bomar, featuring:
Download Product Sheet
Download Product Sheet
- Low Profile Design
- No Sharp Corners to Snag Lines or Sails
- Built & Tested for Harsh Marine Environments
- Heavy Duty, Extruded Aluminum Construction
- Clear Anodized

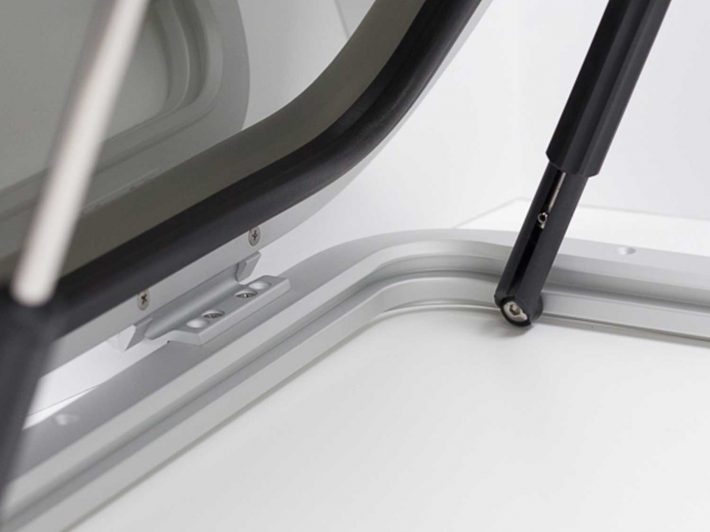

- Part #’s Ending with A = External Aluminum Hinges

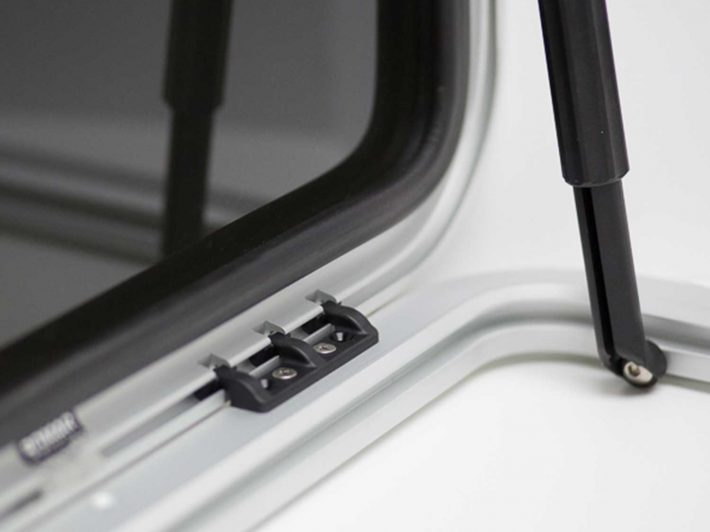

- Part #’s Ending with P = Internal Plastic Hinges
- Built & Tested for Harsh Marine Environments
- For Fast & Convenient Opening/Closing

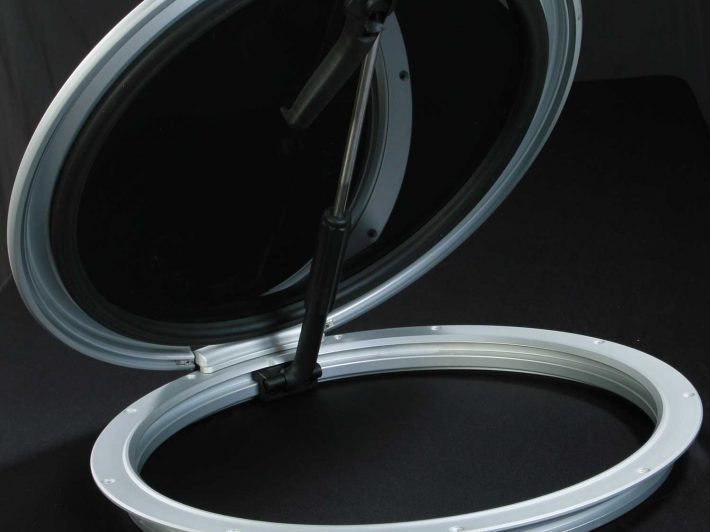

- Stainless Steel Riser Arm Rod
- 316L for Rust & Corrosion Resistance
- Heavy Duty, Smoked Acrylic Standard
- Maximum Clarity & Durability
A&P Series Low Profile
Additional Options
A&P 1000 Series personalization options, for any application.
- 6″ to 50″ to Accomodate Boat Builders & Enthusiasts
- Available in Square, Rectangle and Round Form Factors

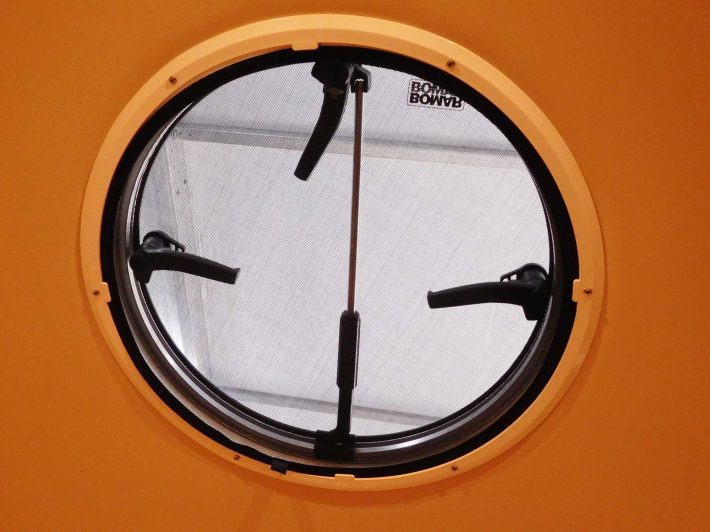

- Molded Trim Ring & Sewn Screens
- Powder Coated or Polished Finish
- White Acrylic Lens
- Inside/Outside Opening
- CE Approvals
- SeaBreeze Shade Compatible
- Bomar Spare Parts & Installation Accessories Readily Available
A&P Series Low Profile
Key Materials
Quality construction, built to last at sea.
- Bomar uses 6061 extruded aluminum to construct our A&P Series extruded low profile hatches. The extrusions are pressure formed at the Bomar manufacturing facility in New Hampshire.
- The A&P Series low profile deck hatches are professionally assembled in-house with 316L, marine grade, stainless steel fasteners. Stainless steel is ideal for harsh marine environments due to it’s rust & corrosion resistance, strength and luster.
- The A&P Series deck hatches come equipped with a smoked polycarbonate Lexan acrylic lenses as standard. Polycarbonate acrylic lenses provide excellent clarity and durability in harsh marine environments.
Bomar A&P Series Low Profile
Deck Hatch Size Chart
| Part # | Height Deck To Lid | Hatch Opening | Hole Cut Out | O.D. of Deck Flange | O.D. of Lid Style A | O.D. of Lid Style C | O.D. of Lid Style P | Shape | Weight (lbs) | PDF Drawing |
|---|---|---|---|---|---|---|---|---|---|---|
| 1000 | 15⁄16” (24 mm) | 9 5⁄8” x 9 5⁄8” (244 mm x 244 mm) | 10 3⁄4” x 10 3⁄4” (273 mm x 273 mm) | 12 3⁄8” x 12 3⁄8” (314 mm x 314 mm) | 13 3⁄16” x 13 3⁄16” (335 mm x 335 mm) | 13 3⁄8” x 13 3⁄8” (340 mm x 340 mm) | 13 7⁄16” x 13 7⁄16” (341 mm x 341 mm) | Square | N/A | DOWNLOAD |
| 1002 | 15⁄16” (24 mm) | 6 7⁄8” x 6 7⁄8” (175 mm x 175 mm) | 8” x 8” (203 mm x 23 mm) | 9 5⁄8” x 9 5⁄8” (244 mm x 244 mm) | 10 7⁄16” x 10 7⁄16” (265 mm x 265 mm) | N/A | N/A | Square | N/A | DOWNLOAD |
| 1003 | 15⁄16” (24 mm) | 8 13⁄16” x 8 13⁄16” (224 mm x 224 mm) | 9 15⁄16” x 9 15⁄16” (252 mm x 252 mm) | 11 9⁄16” x 11 9⁄16” (294 mm x 294 mm) | 12 3⁄8” x 12 3⁄8” (314 mm x 314 mm) | N/A | 12 3⁄8” x 12 3⁄8” (314 mm x 314 mm) | Square | N/A | DOWNLOAD |
| 1005 | 15⁄16” (24 mm) | 9 1⁄8” x 9 1⁄8” (232 mm x 232 mm) | 10 1⁄4” x 10 1⁄4” (260 mm x 260 mm) | 11 7⁄8” x 11 7⁄8” (302 mm x 302 mm) | 12 13⁄16” x 12 13⁄16” (325 mm x 325 mm) | N/A | 12 15⁄16” x 12 15⁄16” (329 mm x 329 mm) | Square | N/A | DOWNLOAD |
| 1006 | 15⁄16” (24 mm) | 8 1⁄16” x 6” (205 mm x 152 mm) | 9 3⁄16” x 7 1⁄8” (233 mm x 161 mm) | 10 13⁄16” x 8 3⁄4” (275 mm x 222 mm) | N/A | N/A | 11 3⁄4” x 9 13⁄16” (296 mm x 249 mm) | Square | N/A | DOWNLOAD |
| 1008 | 15⁄16” (24 mm) | 15 7⁄16” x 5 13⁄16” (392 mm x 148 mm) | 16 9⁄16” x 6 15⁄16” (421 mm x 176 mm) | 18 3⁄16” x 8 9⁄16” (462 mm x 217 mm) | N/A | N/A | 19 1⁄4” x 9 5⁄8” (489 mm x 244 mm) | Square | N/A | DOWNLOAD |
| 1011 | 15⁄16” (24 mm) | 13 1⁄4” x 8” (337 mm x 203 mm) | 14 3⁄8” x 9 1⁄8” (365 mm x 232 mm) | 16” x 10 3⁄4” (406 mm x 273 mm) | 16 13⁄16” x 11 9⁄16” (427 mm x 294 mm) | 17 1/16″ x 11 3/4″ (433 mm x 298 mm) | 17 1/16″ x 11 13/16 (433 mm x 300 mm) | Square | N/A | DOWNLOAD |
| 1011 Hinge Short | 15/16″ (24 mm) | 8″ x 13 1/4″ (203 mm x 337 mm) | 9 1/8″ x 14 3/8″ (232 mm x 365 mm) | 10 3/4″ x 16″ (273 mm x 406 mm) | 11 9/16″ x 16 13/16″ (294 mm x 427 mm) | 11 3/4″ x 17 1/16″ (298 mm x 433 mm) | 11 13/16″ x 17 1/16″ (300 mm x 433 mm) | Square | N/A | DOWNLOAD |
| 1015 | 15/16″ (24 mm) | 10 7/8″ x 10 7/8″ (276 mm x 276 mm) | 12″ x 12″ (305 mm x 305 mm) | 13 5/8″ x 13 5/8″ (346 mm x 346 mm) | 14 7/16″ x 14 7/16″ (367 mm x 367 mm) | 14 5/8″ x 14 5/8″ (371 mm x 371 mm) | 14 11/16″ x 14 11/16″ (373 mm x 373 mm) | Square | N/A | DOWNLOAD |
| 1017 | 15/16″ (24 mm) | 21 1/8″ x 22 1/16″ (537 mm x 560 mm) | 22 1/4″ x 23 3/16″ (565 mm x 589 mm) | 23 7/8″ x 24 13/16″ (606 mm x 630 mm) | N/A | N/A | 24 9/16″ x 25 15/16″ (624 mm x 659 mm) | Square | N/A | DOWNLOAD |
| 1019 | 15/16″ (24 mm) | 18 13/16″ x 14 5/16″ (478 mm x 364 mm) | 19 15/16″ x 15 7/16″ (506 mm x 392 mm) | 21 9/16″ x 17 1/16″ (548 mm x 433 mm) | N/A | 22 5/8″ x 18 1/8″ (575 mm x 461 mm) | 22 3/4″ x 18 1/4″ (578 mm x 464 mm) | Square | N/A | DOWNLOAD |
| 1022 | 15/16″ (24 mm) | 21″ x 21″ (533 mm x 533 mm) | 22 1/8″ x 22 1/8″ (562 mm x 562 mm) | 23 3/4″ x 22 3/4″ (603 mm x 603 mm) | 24 9/16″ x 24 9/16″ (624 mm x 624 mm) | N/A | N/A | Square | N/A | DOWNLOAD |
| 1023 | 15/16″ (24 mm) | 22 1/16″ x 17 3/16″ (560 mm x 437 mm) | 23 3/16″ x 18 5/16″ (589 mm x 465 mm) | 24 13/16″ x 19 15/16 (630 mm x 506 mm) | 25 5/8″ x 20 3/4″ (651 mm x 527 mm) | 25 11/16″ x 20 13/16″ (652 mm x 529 mm) | N/A | Square | N/A | DOWNLOAD |
| 1027 | 15/16″ (24 mm) | 17 1/16″ x 12 1/16″ ( 433 mm x 306 mm) | 16 3/16″ x 13 3/16″ (462 mm x 335 mm) | 19 13/16″ x 14 13/16″ (503 mm x 376 mm) | 20 5/8″ x 15 5/8″ (524 mm x 397 mm) | 20 7/8″ x 15 7/8″ (530 mm x 403 mm) | N/A | Square | N/A | DOWNLOAD |
| 1028 | 15/16″ (24 mm) | 16 11/16″ x 11 9/16″ (424 mm x 294 mm) | 17 13/16″ x 12 11/16″ (322 mm x 494 mm) | 19 7/16″ x 14 5/16″ (494 mm x 364 mm) | N/A | N/A | 20 1/2″ x 15 3/8″ (521 mm x 391 mm) | Square | N/A | DOWNLOAD |
| 1029 | 15/16″ (24 mm) | 17 3/8″ x 12 1/4″ (441 mm x 311 mm) | 18 1/2″ x 13 3/8″ (470 mm x 340 mm) | 20 1/8″ x 15″ (511 mm x 381 mm) | 20 15/8″ x 15 13/16″ (532 mm x 402 mm) | 21 3/16″ x 16 1/16″ (538 mm x 408 mm) | 21 3/16″ x 16 1/16″ (538 mm x 408 mm) | Square | N/A | DOWNLOAD |
| 1034 | 15/16″ (24 mm) | 23 1/16″ x 12 1/8″ (585 mm x 307 mm) | 24 3/16″ x 13 1/4″ (614 mm x 336 mm) | 25 13/16″ x 14 7/8″ (655 mm x 377 mm) | N/A | 26 7/8″ x 14 3/16″ (683 mm x 360 mm) | N/A | Square | N/A | DOWNLOAD |
| 1035 | 15/16″ (24 mm) | 23 1/16″ x 12 1/8″ (585 mm x 307 mm) | 24 3/16″ x 13 1/4″ (614 mm x 336 mm) | 25 13/16″ x 14 7/8″ (655 mm x 377 mm) | N/A | 26 7/8″ x 14 3/16″ (683 mm x 360 mm) | N/A | Square | N/A | DOWNLOAD |
| 1039 | 15/16″ (24 mm) | 19 1/16″ x 19 1/16″ (484 mm x 484 mm) | 20 3/16″ x 20 3/16″ (513 mm x 513 mm) | 21 13/16″ x 21 13/16″ (554 mmx 554 mm) | 22 5/8″ x 22 5/8″ (575 mm x 575 mm) | 22 7/8″ x 22 7/8″ (581 mm x 581 mm) | 22 7/8″ x 22 7/8″ (581 mm x 581 mm) | Square | N/A | DOWNLOAD |
| 1040 | 15/16″ (24 mm) | 19 5/16″ x 14 1/4″ (491 mm x 362 mm) | 20 7/16″ x 15 3/8″ (519 mm x 391 mm) | 22 1/16″ x 17″ (560 mm x 432 mm) | 22 7/8″ x 17 13/16″ (581 mm x 452 mm) | 22 15/16″ x 17 7/8″ (583 mm x 454 mm) | 23 1/8″ x 18 1/16″ (587 mm x 459 mm) | Square | N/A | DOWNLOAD |
| 1042 | 15/16″ (24 mm) | 19 1/4″ x 16 1/2″ (489 mm x 419 mm) | 20 3/8″ x 17 5/8″ (518 mm x 448 mm) | 22″ x 19 1/4″ (559 mm x 489 mm) | 22 13/16″ x 20 1/16″ (579 mm x 510 mm) | 22 7/8″ x 20 1/8″ (581 mm x 511 mm) | N/A | Square | N/A | DOWNLOAD |
| 1042 Hinge Short | 15/16″ (24 mm) | 16 1/2″ x 19 1/4″ (419 mm x 489 mm) | 17 5/8″ x 20 3/8″ (448 mm x 581 mm) | 19 1/4″ x 22″ (489 mm x 559 mm) | 20 1/16″ x 22 13/16″ (510 mm x 579 mm) | 20 1/8″ x 22 7/8″ (511 mm x 581 mm) | N/A | Square | N/A | DOWNLOAD |
| 1044 | 15/16″ (24 mm) | 22 1/2″ x 12 1/8″ (572 mm x 307 mm) | 23 5/8″ x 13 1/4″ (601 mm x 336 mm) | 25 1/4″ x 14 7/8″ (642 mm x 377 mm) | N/A | 24 5/8″ x 14 3/16″ (625 mm x 360 mm) | N/A | Square | N/A | DOWNLOAD |
| 1045 | 15/16″ (24 mm) | 22 1/2″ x 12 1/8″ (572 mm x 307 mm) | 23 5/8″ x 13 1/4″ (601 mm x 336 mm) | 25 1/4″ x 14 7/8″ (642 mm x 377 mm) | N/A | 24 5/8″ x 14 3/16″ (625 mm x 360 mm) | N/A | Square | N/A | DOWNLOAD |
| 1046 | 15/16″ (24 mm) | 29 5/8″ x 14 5/8″ (752 mm x 371 mm) | 30 3/4″ x 15 3/4″ (781 mm x 400 mm) | 32 3/8″ x 17 3/8″ (822 mm x 441 mm) | 33 3/16″ x 18 3/16″ (843 mm x 462 mm) | 33 7/8″ x 18 7/16″ (849 mm x 468 mm) | 33 7/8″ x 18 7/16″ (849 mm x 468 mm) | Square | N/A | DOWNLOAD |
| 1047 | 15/16″ (24 mm) | 27 3/8″ x 26 3/13 (695 mm x 665 mm) | 26 2/4″ x 27 5/16″ (724 mm x 694 mm) | 30 1/8″ x 29″ (765 mm x 735 mm) | N/A | 31″ x 30″ (787 mm x 762 mm) | N/A | Square | N/A | DOWNLOAD |
| 1048 | 15/16″ (24 mm) | 23 1/2″ x 23 1/2″ (597 mm x 597 mm) | 24 5/8″ x 24 5/8″ (625 mm x 625 mm) | 26 1/4″ x 26 1/4″ (667 mm x 667 mm) | N/A | 27 5/16 x 27 5/16″ (694 mm x 694 mm) | 27 5/16 x 27 5/16″ (694 mm x 694 mm) | Square | N/A | DOWNLOAD |
| 1049 | 15/16″ (24 mm) | 24″ x 24″ (610 mm x 610 mm) | 25 1/8″ x 25 1/8″ (638 mm x 638 mm) | 26 3/4″ x 26 3/4″ (679 mm x 679 mm) | 27 5/8″ x 27 5/8″ (702 mm x 702 mm) | 27 13/16″ x 27 13/16″ (706 mm x 706 mm) | 27 13/16″ x 27 13/16″ (706 mm x 706 mm) | Square | N/A | DOWNLOAD |
1052 | 15/16″ (24 mm) | 30 11/16″ x 16 3/4″ (779 mm x 425 mm) | 31 13/16″ x 17 7/8″ (808 mm x 454 mm) | 33 7/16″ x 19 1/2″ (849 mm x 495 mm) | N/A | 34 1/2″ x 20 9/16″ (877 mm x 523 mm) | N/A | Square | N/A | DOWNLOAD |
| 1053 | 15/16″ (24 mm) | 30 11/16″ x 16 3/4″ (779 mm x 425 mm) | 31 13/16″ x 17 7/8″ (808 mm x 454 mm) | 33 7/16″ x 19 1/2″ (849 mm x 495 mm) | N/A | 34 1/2″ x 20 9/16″ (877 mm x 523 mm) | N/A | Square | N/A | DOWNLOAD |
| 1056 | 15/16″ (24 mm) | 29 1/8″ x 14 15/16″ (740 mm x 379 mm) | 30 1/4″ x 16 1/16″ (768 mm x 408 mm) | 31 7/8″ x 17 11/16″ (610 mm x 449 mm) | N/A | 33 7/16″ x 19 1/4″ (850 mm x 490 mm) | N/A | Square | N/A | DOWNLOAD |
| 1057 | 15/16″ (24 mm) | 29 1/8 x 14 15/16″ (740 mm x 379 mm) | 30 1/4″ x 16 1/16″ (768 mm x 408 mm) | 31 7/8″ x 17 11/16″ (610 mm x 449 mm) | N/A | 33 7/16″ x 19 1/4″ (850 mm x 490 mm) | N/A | Square | N/A | DOWNLOAD |
| 1060 | 15/16″ (24 mm) | 13″ x 13″ (300 mm x 300 mm) | 14 1/8″ x 14 1/8″ (359 mm x 359 mm) | 15 3/4″ x 15 3/4″ (400 mm x 400 mm) | 16 9/16″ x 16 9/16″ (421 mm x 421 mm) | N/A | 16 13/16″ x 16 13/16″ (427 mm x 427 mm) | Square | N/A | DOWNLOAD |
| 1061 | 15/16″ (24 mm) | 43 11/16″ x 16 11/16″ (1110 mm x 424 mm) | 44 13/16″ x 17 13/16″ (1138 mm x 452 mm) | 46 7/16″ x 19 7/16″ (1180 mm x 494 mm) | N/A | 47 1/2″ x 20 1/2″ (1207 mm x 521 mm) | N/A | Square | N/A | DOWNLOAD |
| 1062 | 15/16″ (24 mm) | 19 3/16″ x 8 15/16″ (487 mm x 227 mm) | 20 5/16″ x 1 1/16″ (516 mm x 256 mm) | 21 15/16″ x 11 11/16″ (557 mm x 294 mm) | N/A | 22 3/4″ x 12 7/8″ (578 mm x 327 mm) | N/A | Square | N/A | DOWNLOAD |
| 1063 | 15/16″ (24 mm) | 35 5/8″ x 19 7/8″ (906 mm x 505 mm) | 36 3/4″ x 21″ (934 mm x 533 mm) | 33 3/8″ x 22 5/8″ (976 mm x 575 mm) | N/A | 38 15/16″ x 23 1/2″ (990 mm x 594 mm) | N/A | Square | N/A | DOWNLOAD |
| 1064 | 15/16″ (24 mm) | 19 3/4″ x 15 3/4″ (502 mm x 400mm) | 20 7/8″ x 16 7/8″ (630 mm x 429 mm) | 22 1/2″ x 18 1/2″ (572 mm x 470 mm) | 23 1/4″ x 19 1/4″ (591 mm x 490 mm) | N/A | N/A | Square | N/A | DOWNLOAD |
| 1065 | 15/16″ (24 mm) | 12 1/8″ x 12 1/8″ (308 mm x 308 mm) | 13 1/4″ x 13 1/4″ (337 mm x 337 mm) | 14 7/8″ x 14 7/8″ (378 mm x 378 mm) | 15 11/16″ x 15 11/16″ (398 mm x 398 mm) | N/A | N/A | Square | N/A | DOWNLOAD |
| 1067 | 15/16″ (24 mm) | 19 7/8″ x 11″ (505 mm x 279 mm) | 21″ x 12 1/8″ (533 mm x 306 mm) | 22 5/8″ x 13 3/4″ (575 mm x 349 mm) | 23 7/16″ x 14 9/16″ (595 mm x 370 mm) | N/A | N/A | Square | N/A | DOWNLOAD |
| 1069 | 15/16″ (24 mm) | 23 5/8″ x 45 5/8″ (599 mm x 1160 mm) | 24 3/4″ x 46 3/4″ (628 mm x 1188 mm) | 26 3/8″ x 49 3/8″ (669 mm x 1230 mm) | N/A | 49 11/16″ x 27 7/16″ (1262 mm x 697 mm) | N/A | Square | N/A | DOWNLOAD |
| 1070 | 15/16″ (24 mm) | 15 7/16″ x 15 7/16″ (392 mm x 392 mm) | 16 9/16″ x 16 9/16″ (421 mm x 421 mm) | 18 3/16″ x 18 3/16″ (462 mm x 462 mm) | 19″ x 19″ (483 mm x 483 mm) | 19 5/16″ x 19 5/16″ (490 mm x 490 mm) | 19 1/4″ x 19 1/4″ (489 mm x 489 mm) | Square | N/A | DOWNLOAD |
| 1075 | 15/16″ (24 mm) | 15 7/8″ x 15 7/8″ (403 mm x 403 mm) | 17″ x 17″ (432 mm x 432 mm) | 18 5/8″ x 18 5/8″ (473 mm x 473 mm) | 19 1/2″ x 19 1/2″ (495 mm x 495 mm) | N/A | 19 11/16″ x 19 11/16″ (500 mm x 500 mm) | Square | N/A | DOWNLOAD |
| 1076 | 15/16″ (24 mm) | 24 7/8″ x 65 1/2″ (632 mm x 1664 mm) | 26″ x 66 5/8″ (1692 mm x 702 mm) | 27 5/8″ x 68 1/4″ (702 mm x 1734 mm) | N/A | 28 5/8″ x 69 3/16″ (727 mm x 1758 mm) | N/A | Square | N/A | DOWNLOAD |
| 1077 | 15/16″ (24 mm) | 24 3/16″ x 63 3/16″ (614 mm x 1605 mm) | 25 5/8″ x 64 5/16″ (643 mm x 1634 mm) | 26 15/16″ x 65 15/16″ (684 mm x 1675 mm) | N/A | 28″ x 67 5/16″ (711 mm x 1709 mm) | N/A | Square | N/A | DOWNLOAD |
| 1080 | 15/16″ (24 mm) | 17 3/8″ x 17 3/8″ (441 mm x 441 mm) | 18 1/2″ x 18 1/2″ (470 mm x 470 mm) | 20 1/8″ x 20 1/8″ (511 mm x 511 mm) | 20 15/16″ x 19 15/16″ (532 mm x 506 mm) | 21 3/16″ x 21 3/16″ (538 mm x 538 mm) | 21 3/16″ x 21 3/16″ (538 mm x 538 mm) | Square | N/A | DOWNLOAD |
| 1086 | 15/16″ (24 mm) | 18 15/16″ x 18 15/16″ (481 mm x 481 mm) | 20 1/16″ x 20 1/16″ (510 mm x 510 mm) | 21 11/16″ x 21 11/16″ (551 mm x 551 mm) | N/A | 22 11/16 x 22 11/16″ (576 mm x 576 mm) | 22 3/4″ x 22 3/4″ (578 mm x 578 mm) | Square | N/A | DOWNLOAD |
| 1087 | 15/16″ (24 mm) | 16 1/4″ x 67 15/16″ (413 mm x 1725 mm) | 17 3/8″ x 69 1/16″ (442 mm x 1753 mm) | 19″ x 70 11/16″ (483 mm x 1795 mm) | N/A | 31 5/8″ x 71 3/4″ (803 mm x 1822 mm) | N/A | Square | N/A | DOWNLOAD |
| 15/16″ (24 mm) | 20 7/8″ x 15 1/2″ (530 mm x 394 mm) | 22″ x 16 5/8″ (559 mm x 422 mm) | 23 5/8″ x 19 1/4″ (600 mm x 488 mm) | 24 5/16″ x 19 1/16″ (618 mm x 484 mm) | 24 1/2″ x 19 1/4″ (622 mm x 488 mm) | 24 1/2″ x 19 1/4″ (622 mm x 488 mm) | Square | N/A | DOWNLOAD | |
| 1094 | 15/16″ (24 mm) | 24 1/4″ x 18 1/4″ (616 mm x 460 mm) | 25 3/8″ x 19 1/4″ (645 mm x 489 mm) | 27″ x 20 7/8″ (686 mm x 530 mm) | 27 5/8″ x 21 11/16″ (702 mm x 551 mm) | N/A | 28 1/16″ x 21 5/16″ (713 mm x 557 mm) | Square | N/A | DOWNLOAD |
| 1096 | 15/16″ (24 mm) | 24 3/16″ x 50 3/16″ (614 mm x 1275 mm) | 25 5/16″ x 51 5/16″ (643 mm x 1303 mm) | 26 15/16″ x 52 15/16″ (684 mm x 1345 mm) | N/A | 28″ x 54″ (711 mm x 1372 mm) | N/A | Square | N/A | DOWNLOAD |
| 1097 | 15/16″ (24 mm) | 19 1/4″ x 62 3/8″ (489 mm x 1584 mm) | 20 3/8″ x 63 1/2″ (518 mm x 1613 mm) | 22″ x 65 1/8″ (559 mm x 1654 mm) | N/A | 23 1/16″ x 66 3/16″ (586 mm x 1682 mm) | N/A | Square | N/A | DOWNLOAD |
1099 | 15/16″ (24 mm) | 19 1/4″ x 48 5/8″ (489 mm x 1235 mm) | 20 3/8″ x 49 3/4″ (518 mm x 1264 mm) | 22″ x 51 3/8″ (559 mm x 1305 mm) | 22 13/16″ x 52 3/16″ (579 mm x 1325 mm) | N/A | N/A | Square | N/A | DOWNLOAD |

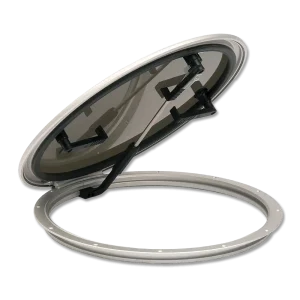

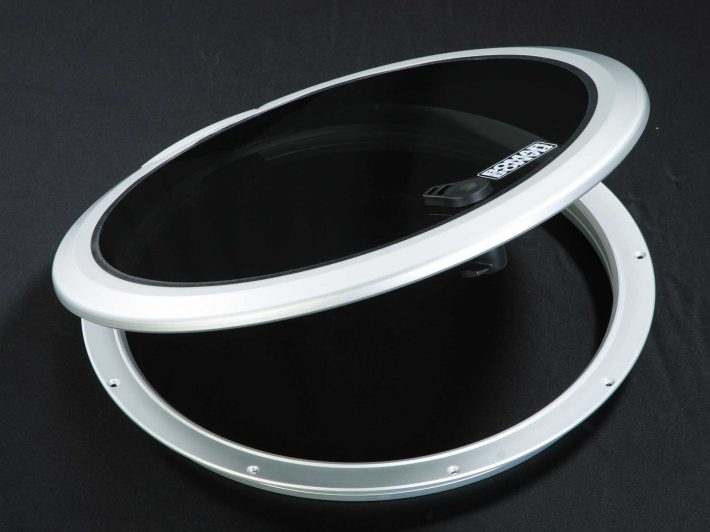

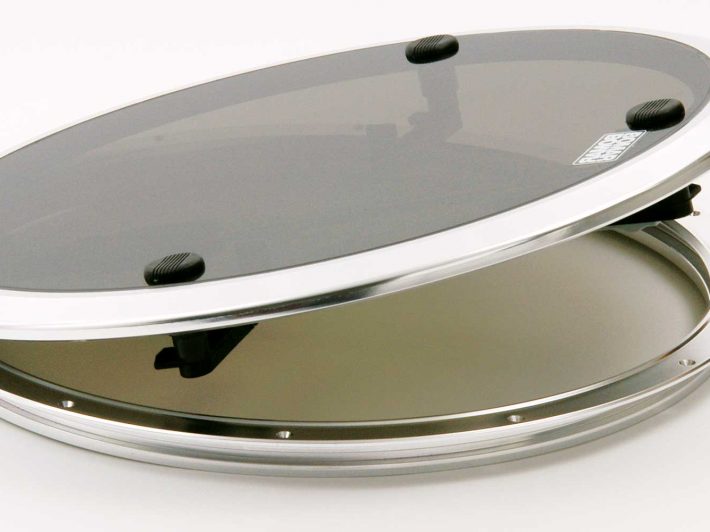

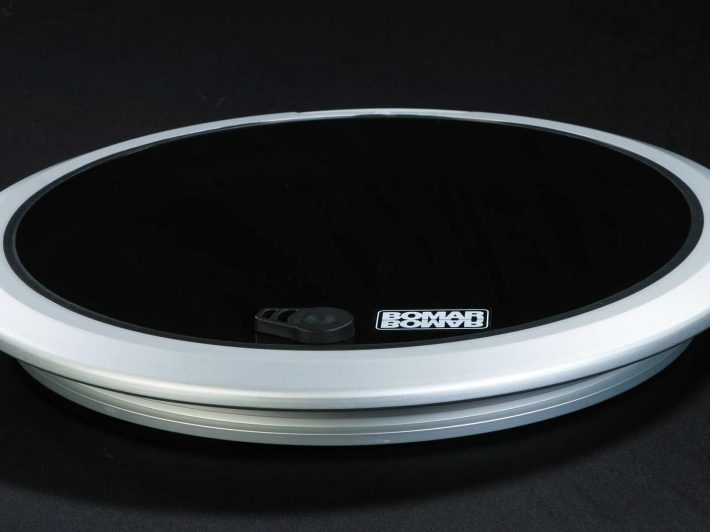

Round Hatches
| Part # | Height Deck To Lid | Hatch Opening | Hole Cut Out | O.D. of Deck Flange | O.D. of Lid Style A | O.D. of Lid Style P | Shape | Weight (lbs) | PDF Drawing |
|---|---|---|---|---|---|---|---|---|---|
| 1115 | 15⁄16” (24 mm) | 10 15/16″ (278 mm) | 12 1/16″ (306 mm) | 13 11/16″ (348 mm) | 14 3/8″ (365 mm) | 14 11/16″ (373 mm) | Circle | N/A | DOWNLOAD |
| 1139 | 15⁄16” (24 mm) | 19 3/16″ (487 mm) | 20 5/16″ (516 mm) | 21 15/16″ (557 mm) | 22 9/16″ (573 mm) | 22 7/8″ (581 mm) | Circle | N/A | DOWNLOAD |
| 1170 | 15⁄16” (24 mm) | 15 7/16″ (392 mm) | 16 9/16″ (421 mm) | 18 3/16″ (462 mm) | 19 1/16″ (484 mm) | 19 1/8″ (486 mm) | Circle | N/A | DOWNLOAD |
A&P Series Low Profile
Frequent Questions
- Bomar is the leading manufacturer of hatches & portlights for enthusiasts and builders since 1947. We truly stand behind our products and pride ourselves on our outstanding customer service. All Bomar hatches are backed by our 1 year warranty against any manufacturing defects.
- Only the individual hatch is included with purchase. Hardware, Spare parts & accessories separately.
- Hatches are safely and neatly packaged for residential or commercial delivery. For large quantities, delivery to a commercial address is highly recommended.
- Yes, Bomar ships products worldwide across the globe. Shipping charges will be determined and billed separately once your order is ready to ship.
- Bomar offers replacement parts such as gaskets, dogs, handles, lenses & more for most hatches produced after 2007.
- Explore Spare Parts
- Customers may purchase these replacement items from an authorized dealer. Hatch lifespan will vary case by case depending on environment, use, and individual care.
A&P Series Low Profile
Purchase Options
Purchase A&P 1000 Series Low Profile hatches by Bomar.
